Каталоги Yamawa твердосплавные метчики для закаленной стали

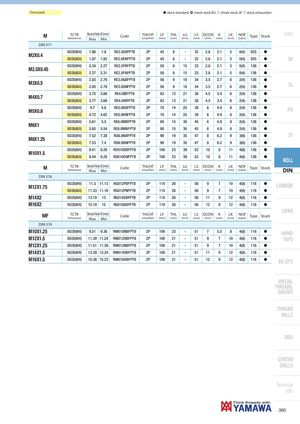

| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| ISO2X(6HX) | 1.86 | 1.8 | RE2.0EBFPTB | 2P | 45 | 8 | - | 32 | 2.8 | 2.1 | 5 | 0(4) | 025 | h | ||
| M2X0.4 | ISO3X(6GX) | 1.87 | 1.82 | RE2.0ENFPTB | 2P | 45 | 8 | - | 32 | 2.8 | 2.1 | 5 | 0(4) | 025 | h | SP |
| ISO2X(6HX) | 2.34 | 2.27 | RE2.5FBFPTB | 2P | 50 | 8 | 15 | 33 | 2.8 | 2.1 | 5 | 0(4) | 136 | h | ||
| M2.5X0.45 | ISOXGX | 2 | 21 | RE2FNFPTB | 2P | 1 | 2 | 21 | 4 | 1 | h | |||||
| 3(6) | .37 | .3 | .5 | 50 | 8 | 5 | 33 | .8 | . | 5 | 0() | 36 | ||||
| M3X05 | ISO2X(6HX) | 2.83 | 2.76 | RE3.0GBFPTB | 2P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 2(4) | 136 | h | |
| . | ISO3X(6GX) | 2.85 | 2.78 | RE3.0GNFPTB | 2P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 2(4) | 136 | h | SL |
| M4X07 | ISO2X(6HX) | 3.75 | 3.66 | RE4.0IBFPTB | 2P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 2(4) | 136 | h | |
| . | ISO3X(6GX) | 3.77 | 3.68 | RE4.0INFPTB | 2P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 2(4) | 136 | h | |
| M5X0.8 | ISO2X(6HX) | 4.7 | 4.6 | RE5.0KBFPTB | 2P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 2(4) | 136 | h | PO |
| ISO3X(6GX) | 4.72 | 4.62 | RE5.0KNFPTB | 2P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 2(4) | 136 | h | ||
| ISO2X(6HX) | 5.61 | 5.5 | RE6.0MBFPTB | 2P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 2(4) | 136 | h | ||
| M6X1 | ISO3X(6GX) | 5.65 | 5.54 | RE6.0MNFPTB | 2P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 2(4) | 136 | h | |
| ISO2X(6HX) | 7.52 | 7.38 | RD8.0NBFPTB | 2P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3(6) | 136 | h | ST | |
| M8X1.25 | ISO3X(6GX) | 7.53 | 7.4 | RD8.0NNFPTB | 2P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3(6) | 136 | h | |
| M10X15 | ISO2X(6HX) | 9.41 | 9.26 | RD010OBFPTB | 2P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 4(8) | 136 | h | |
| . | ISO3X(6GX) | 9.44 | 9.29 | RD010ONFPTB | 2P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 4(8) | 136 | h | ROLL |
| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | DIN |
| DIN 376 | ||||||||||||||||
| ISO2X(6HX) | 11.3 | 11.13 | RG012PBFPTB | 2P | 110 | 26 | - | 56 | 9 | 7 | 10 | 4(8) | 116 | h | CARBIDE | |
| M12X1.75 | ISO3X(6GX) | 11.33 | 11.16 | RG012PNFPTB | 2P | 110 | 26 | - | 56 | 9 | 7 | 10 | 4(8) | 116 | h | |
| M14X2 | ISO2X(6HX) | 13.19 | 13 | RG014QBFPTB | 2P | 110 | 26 | - | 56 | 11 | 9 | 12 | 4(8) | 116 | h | |
| M16X2 | ISO2X(6HX) | 15.19 | 15 | RG016QBFPTB | 2P | 110 | 26 | - | 56 | 12 | 9 | 12 | 4(8) | 116 | h | |
| MF | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | LONG |
| DIN 374 | ||||||||||||||||
| M10X1.25 | ISO2X(6HX) | 9.51 | 9.38 | RM010NBFPTB | 2P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 4(8) | 116 | h | HAND |
| M12X1.5 | ISO2X(6HX) | 11.39 | 11.24 | RM012OBFPTB | 2P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4(8) | 116 | h | TAPS |
| M12X1.25 | ISO2X(6HX) | 11.51 | 11.38 | RM012NBFPTB | 2P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4(8) | 116 | h | |
| M14X1.5 | ISO2X(6HX) | 13.39 | 13.24 | RM014OBFPTB | 2P | 100 | 21 | - | 51 | 11 | 9 | 12 | 4(8) | 116 | h | |
| M16X1.5 | ISO2X(6HX) | 15.38 | 15.23 | RM016OBFPTB | 2P | 100 | 21 | - | 51 | 12 | 9 | 12 | 4(8) | 116 | h | EG (STI) |
