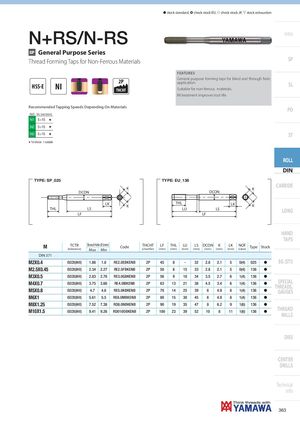

N+RS/N-RS
GP General Purpose Series
Thread Forming Taps for Non-Ferrous Materials SP
FEATURES General purpose forming taps for blind and through hole 2P application.
| HSS-E | NI | SL | ||
| THCHT | Suitable for non-ferrous materials. | |||
| NI treatment improves tool life. | ||||
| Recommended Tapping Speeds Depending On Materials | PO | |||
| ISO Vc (m/min) |
| N1 | 5÷15 | H | |
| N2 | 5÷15 | H | |
| N3 | 5÷15 | H | ST |
H 1st choice I suitable
ROLL
DIN-N+RS/N-RS DIN TYPE: SP_025 TYPE: EU_136
CARBIDE
K K DCON DCON
| LK | THL | LK | ||
| K | K |
THL LS LU LS LONG
LF LF
HAND
TAPS
| M DIN 371 | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | |
| M2X0.4 | ISO2X(6HX) | 1.86 | 1.8 | RE2.0EBKENB | 2P | 45 | 8 | - | 32 | 2.8 | 2.1 | 5 | 0(4) | 025 | h | EG (STI) |
| M2.5X0.45 | ISO2X(6HX) | 2.34 | 2.27 | RE2.5FBKENB | 2P | 50 | 8 | 15 | 33 | 2.8 | 2.1 | 5 | 0(4) | 136 | h | |
| M3X0.5 | ISO2X(6HX) | 2.83 | 2.76 | RE3.0GBKENB | 2P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 1(4) | 136 | h | |
| M4X0.7 | ISO2X(6HX) | 3.75 | 3.66 | RE4.0IBKENB | 2P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 1(4) | 136 | h | SPECIAL THREADS |
| M5X0.8 | ISO2X(6HX) | 4.7 | 4.6 | RE5.0KBKENB | 2P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 1(4) | 136 | h | , GAUGES |
| M6X1 | ISO2X(6HX) | 5.61 | 5.5 | RE6.0MBKENB | 2P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 1(4) | 136 | h | |
| M8X1.25 | ISO2X(6HX) | 7.52 | 7.38 | RD8.0NBKENB | 2P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 1(6) | 136 | h | |
| M10X1.5 | ISO2X(6HX) | 9.41 | 9.26 | RD010OBKENB | 2P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 1(6) | 136 | h | THREAD MILLS |
