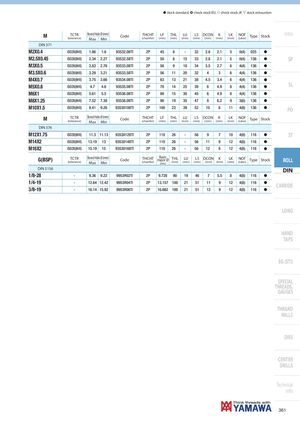

Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| M2X0.4 | ISO2X(6HX) | 1.86 | 1.8 | 93532.0BTI | 2P | 45 | 8 | - | 32 | 2.8 | 2.1 | 5 | 0(4) | 025 | h | |
| M2.5X0.45 | ISO2X(6HX) | 2.34 | 2.27 | 93532.5BTI | 2P | 50 | 8 | 15 | 33 | 2.8 | 2.1 | 5 | 0(4) | 136 | h | SP |
| M3X0.5 | ISO2X(6HX) | 2.83 | 2.76 | 93533.0BTI | 2P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 4(4) | 136 | h | |
| M3.5X0.6 | ISO2X(6HX) | 3.29 | 3.21 | 93533.5BTI | 2P | 56 | 11 | 20 | 32 | 4 | 3 | 6 | 4(4) | 136 | h | |
| M4X0.7 | ISO2X(6HX) | 3.75 | 3.66 | 93534.0BTI | 2P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 4(4) | 136 | h | |
| M5X0.8 | ISO2X(6HX) | 4.7 | 4.6 | 93535.0BTI | 2P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 4(4) | 136 | h | SL |
| M6X1 | ISO2X(6HX) | 5.61 | 5.5 | 93536.0BTI | 2P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 4(4) | 136 | h | |
| M8X1.25 | ISO2X(6HX) | 7.52 | 7.38 | 93538.0BTI | 2P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3(6) | 136 | h | |
| M10X1.5 | ISO2X(6HX) | 9.41 | 9.26 | 9353010BTI | 2P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 4(8) | 136 | h | PO |
| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | |
| DIN 376 | ||||||||||||||||
| M12X1.75 | ISO2X(6HX) | 11.3 | 11.13 | 9353012BTI | 2P | 110 | 26 | - | 56 | 9 | 7 | 10 | 4(8) | 116 | h | ST |
| M14X2 | ISO2X(6HX) | 13.19 | 13 | 9353014BTI | 2P | 110 | 26 | - | 56 | 11 | 9 | 12 | 4(8) | 116 | h | |
| M16X2 | ISO2X(6HX) | 15.19 | 15 | 9353016BTI | 2P | 110 | 26 | - | 56 | 12 | 9 | 12 | 4(8) | 116 | h | |
| G(BSP) | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | Basic major Ø (mm) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | ROLL |
| DIN 5156 | DIN | |||||||||||||||
| 1/8-28 | - | 9.36 | 9.22 | 9953R02TI | 2P | 9.728 | 90 | 19 | 46 | 7 | 5.5 | 8 | 4(8) | 116 | h | |
| 1/4-19 | - | 12.64 | 12.42 | 9953R04TI | 2P | 13.157 | 100 | 21 | 51 | 11 | 9 | 12 | 4(8) | 116 | h | CARIE |
| 3/8-19 | - | 16.14 | 15.92 | 9953R06TI | 2P | 16.662 | 100 | 21 | 51 | 12 | 9 | 12 | 4(8) | 116 | h | BD |
| LONG HAND TAPS EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS |
