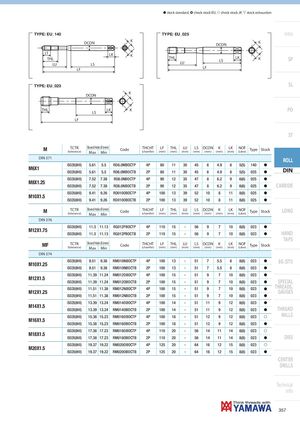

Каталоги Yamawa твердосплавные метчики для закаленной стали
DCON LT THL LU LS LF
TYPE: EU_023 DCON THL LS LF
LK
LK
K
K
K
K
THL
LU
LF
K DCON
LK K SP
LS
SL
PO
ST
| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | |
| DIN 371 | ROLL | |||||||||||||||
| M6X1 | ISO2X(6HX) | 5.61 | 5.5 | RD6.0MBOCTP | 4P | 80 | 11 | 30 | 45 | 6 | 4.9 | 8 | 5(5) | 140 | h | |
| ISO2X(6HX) | 5.61 | 5.5 | RD6.0MBOCTB | 2P | 80 | 11 | 30 | 45 | 6 | 4.9 | 8 | 5(5) | 025 | h | DIN | |
| M8X125 | ISO2X(6HX) | 7.52 | 7.38 | RD8.0NBOCTP | 4P | 90 | 12 | 35 | 47 | 8 | 6.2 | 9 | 6(6) | 025 | h | |
| . | ISO2X(6HX) | 7.52 | 7.38 | RD8.0NBOCTB | 2P | 90 | 12 | 35 | 47 | 8 | 6.2 | 9 | 6(6) | 025 | h | CARBIDE |
| M1X1 | ISO2X(6HX) | 9.41 | 9.26 | RD010OBOCTP | 4P | 100 | 13 | 39 | 52 | 10 | 8 | 11 | 8(8) | 025 | h | |
| 0.5 | ISO2X(6HX) | 9.41 | 9.26 | RD010OBOCTB | 2P | 100 | 13 | 39 | 52 | 10 | 8 | 11 | 8(8) | 025 | h | |
| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | LONG |
| DIN 376 | ||||||||||||||||
| ISO2X(6HX) | 11.3 | 11.13 | RG012PBOCTP | 4P | 110 | 15 | - | 56 | 9 | 7 | 10 | 8(8) | 023 | h | ||
| M12X1.75 | ISO2X(6HX) | 11.3 | 11.13 | RG012PBOCTB | 2P | 110 | 15 | - | 56 | 9 | 7 | 10 | 8(8) | 023 | h | HAND |
| TAPS | ||||||||||||||||
| MF | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | |
| DIN 374 | ||||||||||||||||
| M10X125 | ISO2X(6HX) | 9.51 | 9.38 | RM010NBOCTP | 4P | 100 | 13 | - | 51 | 7 | 5.5 | 8 | 8(8) | 023 | h | EG (STI) |
| . | ISO2X(6HX) | 9.51 | 9.38 | RM010NBOCTB | 2P | 100 | 13 | - | 51 | 7 | 5.5 | 8 | 8(8) | 023 | h | |
| M12X15 | ISO2X(6HX) | 11.39 | 11.24 | RM012OBOCTP | 4P | 100 | 15 | - | 51 | 9 | 7 | 10 | 8(8) | 023 | h | |
| . | ISO2X(6HX) | 11.39 | 11.24 | RM012OBOCTB | 2P | 100 | 15 | - | 51 | 9 | 7 | 10 | 8(8) | 023 | h | SPECIAL |
| M12X125 | ISO2X(6HX) | 11.51 | 11.38 | RM012NBOCTP | 4P | 100 | 15 | - | 51 | 9 | 7 | 10 | 8(8) | 023 | h | THREADS, GAUGES |
| . | ISO2X(6HX) | 11.51 | 11.38 | RM012NBOCTB | 2P | 100 | 15 | - | 51 | 9 | 7 | 10 | 8(8) | 023 | h | |
| ISO2X(6HX) | 13.39 | 13.24 | RM014OBOCTP | 4P | 100 | 14 | - | 51 | 11 | 9 | 12 | 8(8) | 023 | h | ||
| M14X1.5 | ISO2X(6HX) | 13.39 | 13.24 | RM014OBOCTB | 2P | 100 | 14 | - | 51 | 11 | 9 | 12 | 8(8) | 023 | h | THREAD |
| M16X15 | ISO2X(6HX) | 15.38 | 15.23 | RM016OBOCTP | 4P | 100 | 18 | - | 51 | 12 | 9 | 12 | 8(8) | 023 | f | MILLS |
| . | ISO2X(6HX) | 15.38 | 15.23 | RM016OBOCTB | 2P | 100 | 18 | - | 51 | 12 | 9 | 12 | 8(8) | 023 | h | |
| ISO2X(6HX) | 17.38 | 17.23 | RM018OBOCTP | 4P | 110 | 20 | - | 56 | 14 | 11 | 14 | 8(8) | 023 | f | ||
| M18X1.5 | ISO2X(6HX) | 17.38 | 17.23 | RM018OBOCTB | 2P | 110 | 20 | - | 56 | 14 | 11 | 14 | 8(8) | 023 | h | DIES |
| ISO2X(6HX) | 19.37 | 19.22 | RM020OBOCTP | 4P | 125 | 20 | - | 64 | 16 | 12 | 15 | 8(8) | 023 | f | ||
| M20X1.5 | ISO2X(6HX) | 19.37 | 19.22 | RM020OBOCTB | 2P | 125 | 20 | - | 64 | 16 | 12 | 15 | 8(8) | 023 | h |
