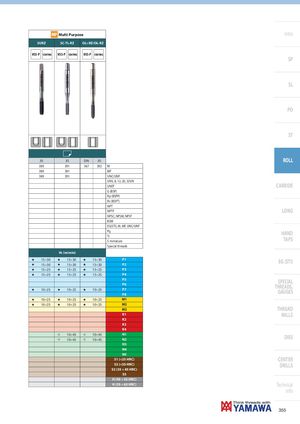

Общий каталог Yamawa 2021 - страница 354
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
MP Intro
Multi Purpose
SURZ SC-TL-RZ OL+RZ/OL-RZ
HSS-P COATING HSS-P COATING HSS-P COATING
SP
SL
PO
ST
| JIS | JIS | DIN | JIS | |
| 389 | 391 | 367 | 392 | M |
| 389 | 391 | MF | ||
| 389 | 391 | UNC/UNF | ||
| UNS,8,12,20,32UN | ||||
| UNEF | ||||
| G(BSP) | ||||
| Rp (BSPP) | ||||
| Rc(BSPT) | ||||
| NPT | ||||
| NPTF | ||||
| NPSC,NPSM,NPSF | ||||
| BSW | ||||
| EG(STI),M,MF,UNC/UNF | ||||
| Pg | ||||
| Tr | ||||
| S miniature | ||||
| Special threads | ||||
| Vc (m/min) | ||||
| H 15÷30 | H 15÷30 | H | 15÷30 | P1 |
| H 15÷30 | H 15÷30 | H | 15÷30 | P2 |
| H 15÷25 | H 15÷25 | H | 15÷25 | P3 |
| H 15÷25 | H 15÷25 | H | 15÷25 | P4 |
| P5 | ||||
| P6 | ||||
| H 10÷25 | H 10÷25 | H | 10÷25 | P7 |
| P8 | ||||
| H 10÷25 | H 10÷25 | H | 10÷25 | M1 |
| H 10÷25 | H 10÷25 | H | 10÷25 | M2 |
| M3 | ||||
| K1 | ||||
| K2 | ||||
| K3 | ||||
| K4 | ||||
| I 10÷45 | I | 10÷45 | N1 | |
| I 10÷45 | I | 10÷45 | N2 | |
| N3 | ||||
| N4 | ||||
| N5 | ||||
| S1 ( | ||||
| S2 ( | ||||
| S3 (35 ÷ 45 HRC) | ||||
| S5 | ||||
| H (45 ÷ 55 HRC) | ||||
| H (55 ÷ 63 HRC) |
