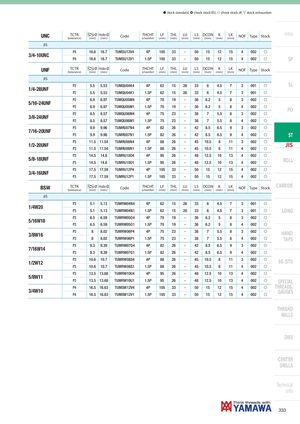

| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| 3/4-10UNC | P4 P4 | 16.6 16.6 | 16.7 16.7 | TUMSU12V4 TUMSU12V1 | 4P 1.5P | 105 105 | 33 33 | - - | 50 50 | 15 15 | 12 12 | 15 15 | 4 4 | 002 002 | f f | SP |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| 1/4-28UNF | P2 | 5.5 | 5.53 | TUMQU04K4 | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | SL |
| P2 | 5.5 | 5.53 | TUMQU04K1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| 5/16-24UNF | P2 | 6.9 | 6.97 | TUMQU05M4 | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| P2 | 6.9 | 6.97 | TUMQU05M1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | PO | |
| P2 | 8.5 | 8.57 | TUMQU06M4 | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | ||
| 3/8-24UNF | P2 | 8.5 | 8.57 | TUMQU06M1 | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | |
| P3 | 9.9 | 9.96 | TUMRU07N4 | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | ||
| 7/16-20UNF | P3 | 9.9 | 9.96 | TUMRU07N1 | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | ST |
| 1/220UNF | P3 | 11.5 | 11.54 | TUMRU08N4 | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | JIS |
| - | P3 | 11.5 | 11.54 | TUMRU08N1 | 1.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | |
| 5/818UNF | P3 | 14.5 | 14.6 | TUMRU10O4 | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | |
| - | P3 | 14.5 | 14.6 | TUMRU10O1 | 1.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | ROLL |
| 3/416UNF | P3 | 17.5 | 17.59 | TUMRU12P4 | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | |
| - | P3 | 17.5 | 17.59 | TUMRU12P1 | 1.5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | |
| BSW | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | CARBIDE |
| JIS | ||||||||||||||||
| 1/4W20 | P3 | 5.1 | 5.13 | TUMRW04N4 | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| P3 | 5.1 | 5.13 | TUMRW04N1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | LONG | |
| P3 | 6.5 | 6.59 | TUMRW05O4 | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | ||
| 5/16W18 | P3 | 6.5 | 6.59 | TUMRW05O1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | |
| P3 | 8 | 8.02 | TUMRW06P4 | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | HAND | |
| 3/8W16 | P3 | 8 | 8.02 | TUMRW06P1 | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | TAPS |
| P3 | 9.3 | 9.39 | TUMRW07Q4 | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | ||
| 7/16W14 | P3 | 9.3 | 9.39 | TUMRW07Q1 | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | |
| P3 | 10.6 | 10.7 | TUMRW08S4 | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | EG (STI) | |
| 1/2W12 | P3 | 10.6 | 10.7 | TUMRW08S1 | 1.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | |
| P3 | 13.5 | 13.68 | TUMRW10U4 | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | ||
| 5/8W11 | P3 | 13.5 | 13.68 | TUMRW10U1 | 1.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | SPECIAL |
| 3/4W10 | P4 | 16.5 | 16.63 | TUMSW12V4 | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | THREADS, |
| GAUGES | ||||||||||||||||
| P4 | 16.5 | 16.63 | TUMSW12V1 | 1.5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | ||
