Каталоги Yamawa твердосплавные метчики для закаленной стали

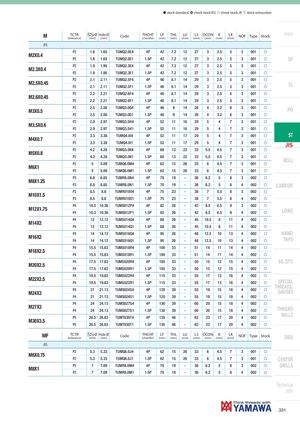

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| P2 | 1.6 | 1.65 | TUMQ2.0E4 | 4P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M2X0.4 | P2 | 1.6 | 1.65 | TUMQ2.0E1 | 1.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | SP |
| M23X04 | P2 | 1.9 | 1.95 | TUMQ2.3E4 | 4P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| .. | P2 | 1.9 | 1.95 | TUMQ2.3E1 | 1.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| M25X045 | P2 | 2.1 | 2.11 | TUMQ2.5F4 | 4P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| .. | P2 | 2.1 | 2.11 | TUMQ2.5F1 | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | SL |
| M26X045 | P2 | 2.2 | 2.21 | TUMQ2.6F4 | 4P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| .. | P2 | 2.2 | 2.21 | TUMQ2.6F1 | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| M3X05 | P2 | 2.5 | 2.56 | TUMQ3.0G4 | 4P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | PO |
| . | P2 | 2.5 | 2.56 | TUMQ3.0G1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| M35X06 | P2 | 2.9 | 2.97 | TUMQ3.5H4 | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| .. | P2 | 2.9 | 2.97 | TUMQ3.5H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| M4X07 | P2 | 3.3 | 3.38 | TUMQ4.0I4 | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ST |
| . | P2 | 3.3 | 3.38 | TUMQ4.0I1 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | JIS |
| P2 | 4.2 | 4.28 | TUMQ5.0K4 | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| M5X0.8 | P2 | 4.2 | 4.28 | TUMQ5.0K1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| P2 | 5 | 5.09 | TUMQ6.0M4 | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ROLL | |
| M6X1 | P2 | 5 | 5.09 | TUMQ6.0M1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| P3 | 6.8 | 6.85 | TUMR8.0N4 | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | ||
| M8X1.25 | P3 | 6.8 | 6.85 | TUMR8.0N1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | CARBIDE |
| P3 | 8.5 | 8.6 | TUMR010O4 | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | ||
| M10X1.5 | P3 | 8.5 | 8.6 | TUMR010O1 | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | |
| P4 | 10.3 | 10.36 | TUMS012P4 | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | ||
| M12X1.75 | P4 | 10.3 | 10.36 | TUMS012P1 | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | LONG |
| P4 | 12 | 12.12 | TUMS014Q4 | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | ||
| M14X2 | P4 | 12 | 12.12 | TUMS014Q1 | 1.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | |
| P4 | 14 | 14.12 | TUMS016Q4 | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | HAND | |
| M16X2 | P4 | 14 | 14.12 | TUMS016Q1 | 1.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | TAPS |
| P4 | 15.5 | 15.63 | TUMS018R4 | 4P | 100 | 33 | - | 51 | 14 | 11 | 14 | 4 | 002 | f | ||
| M18X2.5 | P4 | 15.5 | 15.63 | TUMS018R1 | 1.5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 4 | 002 | f | |
| P4 | 17.5 | 17.63 | TUMS020R4 | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | EG (STI) | |
| M20X2.5 | P4 | 17.5 | 17.63 | TUMS020R1 | 1.5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | |
| P4 | 19.5 | 19.63 | TUMS022R4 | 4P | 115 | 33 | - | 55 | 17 | 13 | 16 | 4 | 002 | f | ||
| M22X2.5 | P4 | 19.5 | 19.63 | TUMS022R1 | 1.5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 4 | 002 | f | SPECIAL |
| P4 | 21 | 21.13 | TUMS024S4 | 4P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | THREADS, GAUGES | |
| M24X3 | P4 | 21 | 21.13 | TUMS024S1 | 1.5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | |
| P4 | 24 | 24.13 | TUMS027S4 | 4P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | ||
| M27X3 | P4 | 24 | 24.13 | TUMS027S1 | 1.5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | THREAD |
| P5 | 26.5 | 26.63 | TUMT030T4 | 4P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | MILLS | |
| M30X3.5 | P5 | 26.5 | 26.63 | TUMT030T1 | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| MF | TCTR | Ø | Hole Ø | Code | THCHT | LF | THL | LU | LS | DCON | K | LK | NOF | Te | Stock | |
| (tolerance) | (mm) | (mm) | (chamfer) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | yp | DIES | ||||
| JIS | ||||||||||||||||
| P2 | 5.3 | 5.33 | TUMQ6.0J4 | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| M6X0.75 | P2 | 5.3 | 5.33 | TUMQ6.0J1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | CENTER |
| P3 | 7 | 7.09 | TUMR8.0M4 | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | DRILLS | |
| M8X1 | P3 | 7 | 7.09 | TUMR8.0M1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f |
