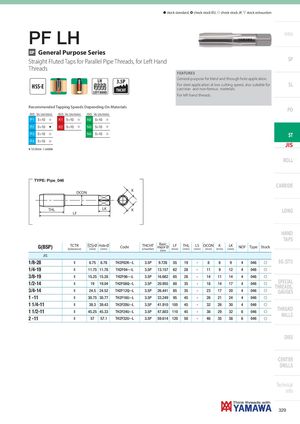

PF LH
GP General Purpose Series
Straight Fluted Taps for Parallel Pipe Threads, for Left Hand SP
Threads
FEATURES LH General purpose for blind and through hole application.
3.5P
| HSS-E | For steel application at low cutting speed, also suitable for | SL | ||
| THCHT | cast iron and non-ferrous materials. | |||
| LEFT HAND | ||||
| For left hand threads. | ||||
| Recommended Tapping Speeds Depending On Materials | PO |
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | K1 | 5÷10 | I | N2 | 5÷10 | I | |
| P2 | 5÷10 | H | K2 | 5÷10 | I | N3 | 5÷10 | I | |
| P3 | 5÷10 | I | N4 | 5÷10 | I | ST | |||
| P4 | 5÷10 | I |
JIS H 1st choice I suitable ROLL JIS-PF LH
TYPE: Pipe_046
DCON
THL LF
LK
CARBIDE
K
K LONG
HAND
TAPS
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| 1/8-28 | II | 8.75 | 8.78 | TH2F02K--L | 3.5P | 9.728 | 55 | 19 | - | 8 | 6 | 9 | 4 | 046 | f | EG (STI) |
| 1/4-19 | II | 11.75 | 11.78 | TH2F04---L | 3.5P | 13.157 | 62 | 28 | - | 11 | 9 | 12 | 4 | 046 | f | |
| 3/8-19 | II | 15.25 | 15.28 | TH2F06---L | 3.5P | 16.662 | 65 | 28 | - | 14 | 11 | 14 | 4 | 046 | f | |
| 1/2-14 | II | 19 | 19.04 | TH2F08Q--L | 3.5P | 20.955 | 80 | 35 | - | 18 | 14 | 17 | 4 | 046 | f | SPECIAL THREADS |
| 3/4-14 | II | 24.5 | 24.52 | TH2F12Q--L | 3.5P | 26.441 | 85 | 35 | - | 23 | 17 | 20 | 4 | 046 | f | , GAUGES |
| 1 -11 | II | 30.75 | 30.77 | TH2F16U--L | 3.5P | 33.249 | 95 | 45 | - | 26 | 21 | 24 | 4 | 046 | f | |
| 1 1/4-11 | II | 39.3 | 39.43 | TH2F20U--L | 3.5P | 41.910 | 105 | 45 | - | 32 | 26 | 30 | 4 | 046 | f | |
| 1 1/2-11 | II | 45.25 | 45.33 | TH2F24U--L | 3.5P | 47.803 | 110 | 45 | - | 38 | 29 | 32 | 6 | 046 | f | THREAD |
| 2 -11 | II | 57 | 57.1 | TH2F32U--L | 3.5P | 59.614 | 120 | 50 | - | 46 | 35 | 38 | 6 | 046 | f | MILLS |
