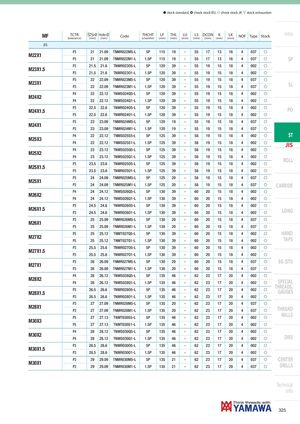

| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| P3 | 21 | 21.09 | TNMR022M5-L | 5P | 115 | 19 | - | 55 | 17 | 13 | 16 | 4 | 037 | f | ||
| M22X1 | P3 | 21 | 21.09 | TNMR022M1-L | 1.5P | 115 | 19 | - | 55 | 17 | 13 | 16 | 4 | 037 | f | SP |
| M23X15 | P3 | 21.5 | 21.6 | TNMR023O5-L | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | |
| . | P3 | 21.5 | 21.6 | TNMR023O1-L | 1.5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | |
| M23X1 | P3 | 22 | 22.09 | TNMR023M5-L | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 037 | f | |
| P3 | 22 | 22.09 | TNMR023M1-L | 1.5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 037 | f | SL | |
| M24X2 | P4 | 22 | 22.12 | TNMS024Q5-L | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | |
| P4 | 22 | 22.12 | TNMS024Q1-L | 1.5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | ||
| M24X15 | P3 | 22.5 | 22.6 | TNMR024O5-L | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | PO |
| . | P3 | 22.5 | 22.6 | TNMR024O1-L | 1.5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | |
| P3 | 23 | 23.09 | TNMR024M5-L | 5P | 120 | 19 | - | 55 | 19 | 15 | 18 | 4 | 037 | f | ||
| M24X1 | P3 | 23 | 23.09 | TNMR024M1-L | 1.5P | 120 | 19 | - | 55 | 19 | 15 | 18 | 4 | 037 | f | |
| P4 | 22 | 22.12 | TNMS025S5-L | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | ST | |
| M25X3 | P4 | 22 | 22.12 | TNMS025S1-L | 1.5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | JIS |
| P4 | 23 | 23.12 | TNMS025Q5-L | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | ||
| M25X2 | P4 | 23 | 23.12 | TNMS025Q1-L | 1.5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | ROLL |
| M25X15 | P3 | 23.5 | 23.6 | TNMR025O5-L | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | |
| . | P3 | 23.5 | 23.6 | TNMR025O1-L | 1.5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | |
| MX | P3 | 24 | 24.09 | TNMR025M5-L | 5P | 125 | 20 | - | 58 | 19 | 15 | 18 | 4 | 037 | f | |
| 251 | P3 | 24 | 24.09 | TNMR025M1-L | 1.5P | 125 | 20 | - | 58 | 19 | 15 | 18 | 4 | 037 | f | CARBIDE |
| P4 | 24 | 24.12 | TNMS026Q5-L | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | ||
| M26X2 | P4 | 24 | 24.12 | TNMS026Q1-L | 1.5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | |
| P3 | 24.5 | 24.6 | TNMR026O5-L | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | ||
| M26X1.5 | P3 | 24.5 | 24.6 | TNMR026O1-L | 1.5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | LONG |
| P3 | 25 | 25.09 | TNMR026M5-L | 5P | 130 | 20 | - | 60 | 20 | 15 | 18 | 4 | 037 | f | ||
| M26X1 | P3 | 25 | 25.09 | TNMR026M1-L | 1.5P | 130 | 20 | - | 60 | 20 | 15 | 18 | 4 | 037 | f | |
| P5 | 25 | 25.12 | TNMT027Q5-L | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | HAND | |
| M27X2 | P5 | 25 | 25.12 | TNMT027Q1-L | 1.5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | TAPS |
| P3 | 25.5 | 25.6 | TNMR027O5-L | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | ||
| M27X1.5 | P3 | 25.5 | 25.6 | TNMR027O1-L | 1.5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | |
| P3 | 26 | 26.09 | TNMR027M5-L | 5P | 130 | 20 | - | 60 | 20 | 15 | 18 | 4 | 037 | f | EG (STI) | |
| M27X1 | P3 | 26 | 26.09 | TNMR027M1-L | 1.5P | 130 | 20 | - | 60 | 20 | 15 | 18 | 4 | 037 | f | |
| M28X2 | P4 | 26 | 26.12 | TNMS028Q5-L | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| P4 | 26 | 26.12 | TNMS028Q1-L | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | SPECIAL | |
| M28X15 | P3 | 26.5 | 26.6 | TNMR028O5-L | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | THREADS, GAUGES |
| . | P3 | 26.5 | 26.6 | TNMR028O1-L | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| P3 | 27 | 27.09 | TNMR028M5-L | 5P | 135 | 20 | - | 62 | 23 | 17 | 20 | 4 | 037 | f | ||
| M28X1 | P3 | 27 | 27.09 | TNMR028M1-L | 1.5P | 135 | 20 | - | 62 | 23 | 17 | 20 | 4 | 037 | f | THREAD |
| P5 | 27 | 27.13 | TNMT030S5-L | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | MILLS | |
| M30X3 | P5 | 27 | 27.13 | TNMT030S1-L | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| P4 | 28 | 28.12 | TNMS030Q5-L | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | ||
| M30X2 | DIES | |||||||||||||||
| P4 | 28 | 28.12 | TNMS030Q1-L | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | ||
| P3 | 28.5 | 28.6 | TNMR030O5-L | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | ||
| M30X1.5 | P3 | 28.5 | 28.6 | TNMR030O1-L | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| P3 | 29 | 29.09 | TNMR030M5-L | 5P | 135 | 21 | - | 62 | 23 | 17 | 20 | 4 | 037 | f | CENTER | |
| M30X1 | P3 | 29 | 29.09 | TNMR030M1-L | 1.5P | 135 | 21 | - | 62 | 23 | 17 | 20 | 4 | 037 | f | DRILLS |
