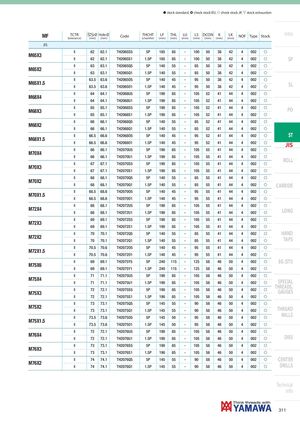

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion MF TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock Intro JIS II 62 62.1 TH2065S5 5P 185 85 - 100 50 38 42 4 002 f M65X3 II 62 62.1 TH2065S1 1.5P 185 85 - 100 50 38 42 4 002 f SP II 63 63.1 TH2065Q5 5P 140 55 - 85 50 38 42 4 002 f M65X2 II 63 63.1 TH2065Q1 1.5P 140 55 - 85 50 38 42 4 002 f II 63.5 63.6 TH2065O5 5P 140 45 - 95 50 38 42 4 002 f M65X1.5 II 63.5 63.6 TH2065O1 1.5P 140 45 - 95 50 38 42 4 002 f SL II 64 64.1 TH2068U5 5P 190 85 - 105 52 41 44 4 002 f M68X4 II 64 64.1 TH2068U1 1.5P 190 85 - 105 52 41 44 4 002 f M68X3 II 65 65.1 TH2068S5 5P 190 85 - 105 52 41 44 4 002 f PO II 65 65.1 TH2068S1 1.5P 190 85 - 105 52 41 44 4 002 f II 66 66.1 TH2068Q5 5P 140 55 - 85 52 41 44 4 002 f M68X2 II 66 66.1 TH2068Q1 1.5P 140 55 - 85 52 41 44 4 002 f II 66.5 66.6 TH2068O5 5P 140 45 - 95 52 41 44 4 002 f ST M68X1.5 II 66.5 66.6 TH2068O1 1.5P 140 45 - 95 52 41 44 4 002 f JIS II 66 66.1 TH2070U5 5P 190 85 - 105 55 41 44 4 002 f M70X4 II 66 66.1 TH2070U1 1.5P 190 85 - 105 55 41 44 4 002 f II 67 67.1 TH2070S5 5P 190 85 - 105 55 41 44 4 002 f ROLL M70X3 II 67 67.1 TH2070S1 1.5P 190 85 - 105 55 41 44 4 002 f II 68 68.1 TH2070Q5 5P 140 55 - 85 55 41 44 4 002 f M70X2 II 68 68.1 TH2070Q1 1.5P 140 55 - 85 55 41 44 4 002 f CARBIDE II 68.5 68.6 TH2070O5 5P 140 45 - 95 55 41 44 4 002 f M70X1.5 II 68.5 68.6 TH2070O1 1.5P 140 45 - 95 55 41 44 4 002 f II 68 68.1 TH2072U5 5P 190 85 - 105 55 41 44 4 002 f M72X4 II 68 68.1 TH2072U1 1.5P 190 85 - 105 55 41 44 4 002 f LONG II 69 69.1 TH2072S5 5P 190 85 - 105 55 41 44 4 002 f M72X3 II 69 69.1 TH2072S1 1.5P 190 85 - 105 55 41 44 4 002 f II 70 70.1 TH2072Q5 5P 140 55 - 85 55 41 44 4 002 f HAND M72X2 II 70 70.1 TH2072Q1 1.5P 140 55 - 85 55 41 44 4 002 f TAPS II 70.5 70.6 TH2072O5 5P 140 45 - 95 55 41 44 4 002 f M72X1.5 II 70.5 70.6 TH2072O1 1.5P 140 45 - 95 55 41 44 4 002 f II 69 69.1 TH2075Y5 5P 240 115 - 125 58 46 50 4 002 f EG (STI) M75X6 II 69 69.1 TH2075Y1 1.5P 240 115 - 125 58 46 50 4 002 f II 71 71.1 TH2075U5 5P 190 85 - 105 58 46 50 4 002 f M75X4 II 71 71.1 TH2075U1 1.5P 190 85 - 105 58 46 50 4 002 f SPECIAL M75X3 II 72 72.1 TH2075S5 5P 190 85 - 105 58 46 50 4 002 f THREADS,GAUGES II 72 72.1 TH2075S1 1.5P 190 85 - 105 58 46 50 4 002 f II 73 73.1 TH2075Q5 5P 145 55 - 90 58 46 50 4 002 f M75X2 II 73 73.1 TH2075Q1 1.5P 145 55 - 90 58 46 50 4 002 f THREAD II 73.5 73.6 TH2075O5 5P 145 50 - 95 58 46 50 4 002 f MILLS M75X1.5 II 73.5 73.6 TH2075O1 1.5P 145 50 - 95 58 46 50 4 002 f II 72 72.1 TH2076U5 5P 190 85 - 105 58 46 50 4 002 f M76X4 II 72 72.1 TH2076U1 1.5P 190 85 - 105 58 46 50 4 002 f DIES II 73 73.1 TH2076S5 5P 190 85 - 105 58 46 50 4 002 f M76X3 II 73 73.1 TH2076S1 1.5P 190 85 - 105 58 46 50 4 002 f M76X2 II 74 74.1 TH2076Q5 5P 145 55 - 90 58 46 50 4 002 f CENTERII7474.1TH2076Q11.5P14555-905846504002fDRILLS Technical info 311
