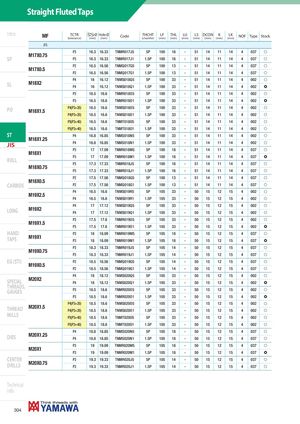

Общий каталог Yamawa 2021 - страница 303

• Copertina
• Capitoli web
• Parte finale web

Straight Fluted Taps Intro MF TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock JIS P3 16.3 16.33 TNMR017J5 5P 100 16 - 51 14 11 14 4 037 f M17X0.75 SP P3 16.3 16.33 TNMR017J1 1.5P 100 16 - 51 14 11 14 4 037 f P2 16.5 16.56 TNMQ017G5 5P 100 13 - 51 14 11 14 4 037 f M17X0.5 P2 16.5 16.56 TNMQ017G1 1.5P 100 13 - 51 14 11 14 4 037 f P4 16 16.12 TNMS018Q5 5P 100 33 - 51 14 11 14 4 002 f SL M18X2 P4 16 16.12 TNMS018Q1 1.5P 100 33 - 51 14 11 14 4 002 ) P3 16.5 16.6 TNMR018O5 5P 100 33 - 51 14 11 14 4 002 f P3 16.5 16.6 TNMR018O1 1.5P 100 33 - 51 14 11 14 4 002 ) PO M18X1.5 P4(P3+20) 16.5 16.6 TNMS018O5 5P 100 33 - 51 14 11 14 4 002 f P4(P3+20) 16.5 16.6 TNMS018O1 1.5P 100 33 - 51 14 11 14 4 002 f P5(P3+40) 16.5 16.6 TNMT018O5 5P 100 33 - 51 14 11 14 4 002 f P5(P3+40) 16.5 16.6 TNMT018O1 1.5P 100 33 - 51 14 11 14 4 002 f ST P4 16.8 16.85 TNMS018N5 5P 100 33 - 51 14 11 14 4 002 f M18X1.25 JIS P4 16.8 16.85 TNMS018N1 1.5P 100 33 - 51 14 11 14 4 002 f P3 17 17.09 TNMR018M5 5P 100 18 - 51 14 11 14 4 037 f M18X1 P3 17 17.09 TNMR018M1 1.5P 100 18 - 51 14 11 14 4 037 ) ROLL P3 17.3 17.33 TNMR018J5 5P 100 16 - 51 14 11 14 4 037 f M18X0.75 P3 17.3 17.33 TNMR018J1 1.5P 100 16 - 51 14 11 14 4 037 f P2 17.5 17.56 TNMQ018G5 5P 100 13 - 51 14 11 14 4 037 f M18X0.5 CARBIDE P2 17.5 17.56 TNMQ018G1 1.5P 100 13 - 51 14 11 14 4 037 f P4 16.5 16.6 TNMS019R5 5P 105 33 - 50 15 12 15 4 002 f M19X2.5 P4 16.5 16.6 TNMS019R1 1.5P 105 33 - 50 15 12 15 4 002 f P4 17 17.12 TNMS019Q5 5P 105 33 - 50 15 12 15 4 002 f LONG M19X2 P4 17 17.12 TNMS019Q1 1.5P 105 33 - 50 15 12 15 4 002 f P3 17.5 17.6 TNMR019O5 5P 105 33 - 50 15 12 15 4 002 f M19X1.5 P3 17.5 17.6 TNMR019O1 1.5P 105 33 - 50 15 12 15 4 002 ) HAND P3 18 18.09 TNMR019M5 5P 105 18 - 50 15 12 15 4 037 f TAPS M19X1 P3 18 18.09 TNMR019M1 1.5P 105 18 - 50 15 12 15 4 037 ) P3 18.3 18.33 TNMR019J5 5P 105 14 - 50 15 12 15 4 037 f M19X0.75 P3 18.3 18.33 TNMR019J1 1.5P 105 14 - 50 15 12 15 4 037 f EG (STI) P2 18.5 18.56 TNMQ019G5 5P 105 14 - 50 15 12 15 4 037 f M19X0.5 P2 18.5 18.56 TNMQ019G1 1.5P 105 14 - 50 15 12 15 4 037 f P4 18 18.12 TNMS020Q5 5P 105 33 - 50 15 12 15 4 002 f SPECIAL M20X2 P4 18 18.12 TNMS020Q1 1.5P 105 33 - 50 15 12 15 4 002 ) THREADS,GAUGES P3 18.5 18.6 TNMR020O5 5P 105 33 - 50 15 12 15 4 002 f P3 18.5 18.6 TNMR020O1 1.5P 105 33 - 50 15 12 15 4 002 ) P4(P3+20) 18.5 18.6 TNMS020O5 5P 105 33 - 50 15 12 15 4 002 f THREAD M20X1.5 P4(P3+20) 18.5 18.6 TNMS020O1 1.5P 105 33 - 50 15 12 15 4 002 f MILLS P5(P3+40) 18.5 18.6 TNMT020O5 5P 105 33 - 50 15 12 15 4 002 f P5(P3+40) 18.5 18.6 TNMT020O1 1.5P 105 33 - 50 15 12 15 4 002 f P4 18.8 18.85 TNMS020N5 5P 105 18 - 50 15 12 15 4 037 f DIES M20X1.25 P4 18.8 18.85 TNMS020N1 1.5P 105 18 - 50 15 12 15 4 037 f P3 19 19.09 TNMR020M5 5P 105 18 - 50 15 12 15 4 037 f M20X1 P3 19 19.09 TNMR020M1 1.5P 105 18 - 50 15 12 15 4 037 ) CENTERDRILLSM20X0.75 P3 19.3 19.33 TNMR020J5 5P 105 14 - 50 15 12 15 4 037 fP319.319.33TNMR020J11.5P10514-501512154037f Technical info 304
