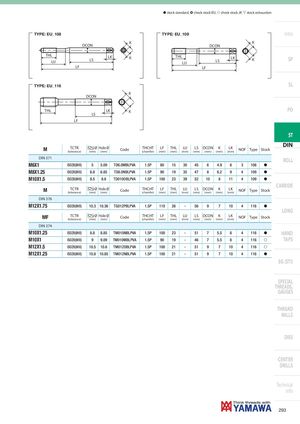

K DCON DCON THL THL LK K LS LS LU LU LF LF
TYPE: EU_116 K DCON
THL LK K
LS LF
LK
K
K
SP
SL
PO
ST
DIN
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | ROLL | |||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | TD6.0MBLPVA | 1.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 108 | h | |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | TD8.0NBLPVA | 1.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 4 | 109 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | TD010OBLPVA | 1.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 4 | 109 | h | |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | CARBIDE |
| DIN 376 | ||||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | TG012PBLPVA | 1.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 4 | 116 | h | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| DIN 374 | ||||||||||||||||
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | TM010NBLPVA | 1.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 4 | 116 | h | HAND |
| M10X1 | ISO2X(6HX) | 9 | 9.09 | TM010MBLPVA | 1.5P | 90 | 19 | - | 46 | 7 | 5.5 | 8 | 4 | 116 | f | TAPS |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | TM012OBLPVA | 1.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 116 | f | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | TM012NBLPVA | 1.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 116 | h |
EG (STI)
SPECIAL
THREADS,
