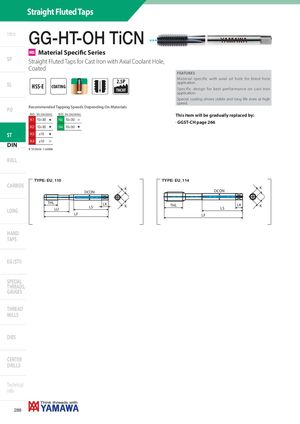

GG-HT-OH TiCN
MS Material Specifi c Series
SP Straight Fluted Taps for Cast Iron with Axial Coolant Hole,
Coated
2.5P
SL HSS-E
COATING
THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| K1 | 10÷30 | H | N2 | 10÷30 | I | |
| K2 | 10÷30 | H | N4 | 10÷30 | H | |
| ST | K3 | ≤15 | H | |||
| K4 | ≤10 | I |
DIN H 1st choice I suitable ROLL
FEATURES Material specific with axial oil hole for blind hole application. Specific design for best performance on cast iron application. Special coating allows stable and long life even at high speed.
This item will be gradually replaced by: . GGST-CH page 266
DIN-GG-HT-OH TiCN
TYPE: EU_110 TYPE: EU_114
CARBIDE
K K DCON DCON
THL
| LK | THL | LK | K | ||
| LS | K |
LONG LU LS
LF LF
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
