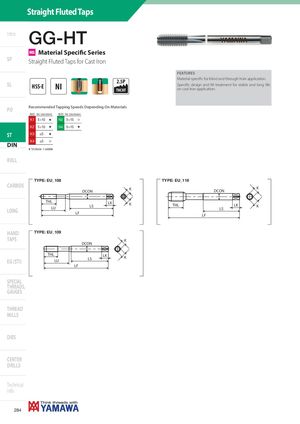

Straight Fluted Taps Intro GG-HT MS Material Specific Series SP Straight Fluted Taps for Cast Iron FEATURES Material specific for blind and through hole application. 2.5P SL HSS-E NI Specific design and NI treatment for stable and long life THCHT on cast iron application. Recommended Tapping Speeds Depending On Materials PO ISO Vc (m/min) ISO Vc (m/min) K1 5÷10 H N2 5÷15 I K2 5÷10 H N4 5÷15 H K3 ≤5 H ST K4 ≤5 I DIN H 1st choice I suitable ROLL DIN-GG-HT TYPE: EU_108 TYPE: EU_116 CARBIDE K K DCON DCON THL LK LS K THL LK K LU LS LONG LF LF HAND TYPE: EU_109 TAPS K DCON THL LK LS K EG (STI) LU LF SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS Technical info 284
