Каталоги Yamawa твердосплавные метчики для закаленной стали

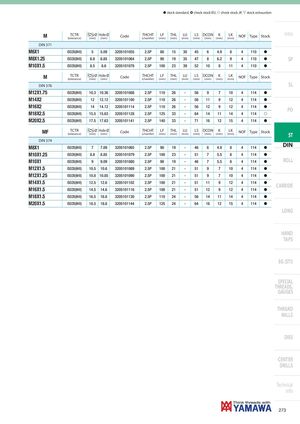

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | 3205101055 | 2.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 4 | 110 | h | |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | 3205101064 | 2.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 4 | 110 | h | SP |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | 3205101078 | 2.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 4 | 110 | h | |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | SL | |||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | 3205101088 | 2.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 4 | 114 | h | |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | 3205101100 | 2.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 4 | 114 | h | |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | 3205101114 | 2.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 4 | 114 | h | PO |
| M18X2.5 | ISO2X(6HX) | 15.5 | 15.63 | 3205101128 | 2.5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 4 | 114 | f | |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | 3205101141 | 2.5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 4 | 114 | h | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | ST |
| DIN 374 | ||||||||||||||||
| M8X1 | ISO2X(6HX) | 7 | 7.09 | 3205101065 | 2.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 4 | 114 | h | DIN |
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | 3205101079 | 2.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 4 | 114 | h | |
| M10X1 | ISO2X(6HX) | 9 | 9.09 | 3205101080 | 2.5P | 90 | 19 | - | 46 | 7 | 5.5 | 8 | 4 | 114 | h | ROLL |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | 3205101089 | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 114 | h | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | 3205101090 | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 114 | h | |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | 3205101102 | 2.5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 4 | 114 | h | CARBIDE |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | 3205101116 | 2.5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 4 | 114 | h | |
| M18X1.5 | ISO2X(6HX) | 16.5 | 16.6 | 3205101130 | 2.5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 4 | 114 | h | |
| M20X1.5 | ISO2X(6HX) | 18.5 | 18.6 | 3205101144 | 2.5P | 125 | 24 | - | 64 | 16 | 12 | 15 | 4 | 114 | h |
