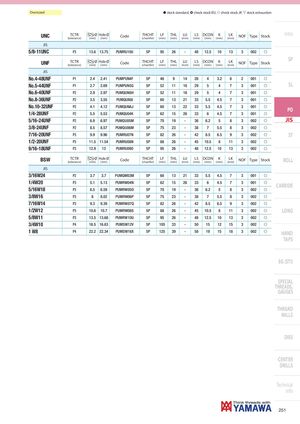

Общий каталог Yamawa 2021 - страница 250
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| 5/8-11UNC | P3 | 13.6 | 13.75 | PUMRU10U | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SP |
| JIS | ||||||||||||||||
| No.4-48UNF | P1 | 2.4 | 2.41 | PUMPUN4F | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 2 | 001 | f | |
| No.5-44UNF | P1 | 2.7 | 2.69 | PUMPUN5G | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | SL |
| No.6-40UNF | P2 | 2.9 | 2.97 | PUMQUN6H | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| No.8-36UNF | P2 | 3.5 | 3.55 | PUMQUN8I | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| No.10-32UNF | P2 | 4.1 | 4.12 | PUMQUNAJ | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| 1/4-28UNF | P2 | 5.5 | 5.53 | PUMQU04K | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | PO |
| 5/16-24UNF | P2 | 6.9 | 6.97 | PUMQU05M | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | JIS |
| 3/8-24UNF | P2 | 8.5 | 8.57 | PUMQU06M | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| 7/16-20UNF | P3 | 9.9 | 9.96 | PUMRU07N | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | ST |
| 1/2-20UNF | P3 | 11.5 | 11.54 | PUMRU08N | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | |
| 9/16-18UNF | P3 | 12.9 | 13 | PUMRU09O | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | |
| BSW | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | ROLL |
| JIS | ||||||||||||||||
| 3/16W24 | P2 | 3.7 | 3.7 | PUMQW03M | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| 1/4W20 | P3 | 5.1 | 5.13 | PUMRW04N | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| 5/16W18 | P3 | 6.5 | 6.59 | PUMRW05O | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | CARBIDE |
| 3/8W16 | P3 | 8 | 8.02 | PUMRW06P | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| 7/16W14 | P3 | 9.3 | 9.39 | PUMRW07Q | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| 1/2W12 | P3 | 10.6 | 10.7 | PUMRW08S | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | LONG |
| 5/8W11 | P3 | 13.5 | 13.68 | PUMRW10U | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | |
| 3/4W10 | P4 | 16.5 | 16.63 | PUMSW12V | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | |
| 1 W8 | P4 | 22.2 | 22.34 | PUMSW16X | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 3 | 002 | f | HAND |
