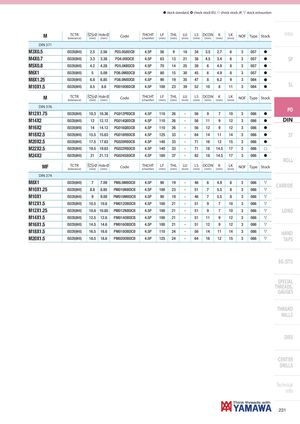

Общий каталог Yamawa 2021 - страница 230
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | PD3.0GBDCB | 4.5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | h | |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | PD4.0IBDCB | 4.5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | h | SP |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | PD5.0KBDCB | 4.5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 057 | h | |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | PD6.0MBDCB | 4.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 057 | h | |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | PD8.0NBDCB | 4.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | PD010OBDCB | 4.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 084 | h | SL |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | PO | |||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | PG012PBDCB | 4.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 086 | h | |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | PG014QBDCB | 4.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 086 | h | DIN |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | PG016QBDCB | 4.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 086 | h | |
| M18X2.5 | ISO2X(6HX) | 15.5 | 15.63 | PG018RBDCB | 4.5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 3 | 086 | h | ST |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | PG020RBDCB | 4.5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 3 | 086 | h | |
| M22X2.5 | ISO2X(6HX) | 19.5 | 19.63 | PG022RBDCB | 4.5P | 140 | 33 | - | 71 | 18 | 14.5 | 17 | 3 | 086 | f | |
| M24X3 | ISO2X(6HX) | 21 | 21.13 | PG024SBDCB | 4.5P | 160 | 37 | - | 82 | 18 | 14.5 | 17 | 3 | 086 | h | ROLL |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 374 | ||||||||||||||||
| M8X1 | ISO2X(6HX) | 7 | 7.09 | PM8.0MBDCB | 4.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 3 | 086 | m | CARBIDE |
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | PM010NBDCB | 4.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 3 | 086 | m | |
| M10X1 | ISO2X(6HX) | 9 | 9.09 | PM010MBDCB | 4.5P | 90 | 19 | - | 46 | 7 | 5.5 | 8 | 3 | 086 | m | |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | PM012OBDCB | 4.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | m | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | PM012NBDCB | 4.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | m | LONG |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | PM014OBDCB | 4.5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 3 | 086 | m | |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | PM016OBDCB | 4.5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 3 | 086 | m | |
| M18X1.5 | ISO2X(6HX) | 16.5 | 16.6 | PM018OBDCB | 4.5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 3 | 086 | m | HAND |
| M20X15 | ISO2X(6HX) | 185 | 186 | PM020OBDCB | 45P | 125 | 24 | - | 64 | 16 | 12 | 15 | 3 | 086 | m | |
| . | . | . | . | TAPS | ||||||||||||
| EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS |
