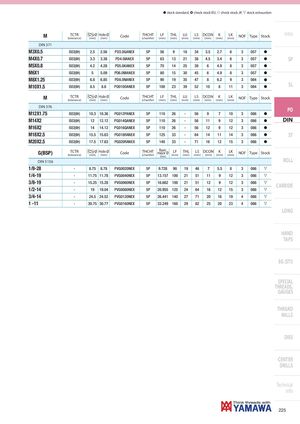

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| M3X0.5 | ISO2(6H) | 2.5 | 2.56 | PD3.0GANEX | 5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | h | |
| M4X0.7 | ISO2(6H) | 3.3 | 3.38 | PD4.0IANEX | 5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | h | SP |
| M5X0.8 | ISO2(6H) | 4.2 | 4.28 | PD5.0KANEX | 5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 057 | h | |
| M6X1 | ISO2(6H) | 5 | 5.09 | PD6.0MANEX | 5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 057 | h | |
| M8X1.25 | ISO2(6H) | 6.8 | 6.85 | PD8.0NANEX | 5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | h | |
| M10X1.5 | ISO2(6H) | 8.5 | 8.6 | PD010OANEX | 5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 084 | h | SL |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | PO | |||||||||||||||
| M12X1.75 | ISO2(6H) | 10.3 | 10.36 | PG012PANEX | 5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 086 | h | |
| M14X2 | ISO2(6H) | 12 | 12.12 | PG014QANEX | 5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 086 | h | DIN |
| M16X2 | ISO2(6H) | 14 | 14.12 | PG016QANEX | 5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 086 | h | |
| M18X2.5 | ISO2(6H) | 15.5 | 15.63 | PG018RANEX | 5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 3 | 086 | h | ST |
| M20X2.5 | ISO2(6H) | 17.5 | 17.63 | PG020RANEX | 5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 3 | 086 | h | |
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 5156 | ROLL | |||||||||||||||
| 1/8-28 | - | 8.75 | 8.78 | PVG0020NEX | 5P | 9.728 | 90 | 19 | 46 | 7 | 5.5 | 8 | 3 | 086 | m | |
| 1/4-19 | - | 11.75 | 11.78 | PVG0040NEX | 5P | 13.157 | 100 | 21 | 51 | 11 | 9 | 12 | 3 | 086 | m | |
| 3/8-19 | - | 15.25 | 15.28 | PVG0060NEX | 5P | 16.662 | 100 | 21 | 51 | 12 | 9 | 12 | 3 | 086 | m | CARBIDE |
| 1/2-14 | - | 19 | 19.04 | PVG0080NEX | 5P | 20.955 | 125 | 24 | 64 | 16 | 12 | 15 | 3 | 086 | m | |
| 3/4-14 | - | 24.5 | 24.52 | PVG0120NEX | 5P | 26.441 | 140 | 27 | 71 | 20 | 16 | 19 | 4 | 086 | m | |
| 1 -11 | - | 30.75 | 30.77 | PVG0160NEX | 5P | 33.249 | 160 | 29 | 82 | 25 | 20 | 23 | 4 | 086 | m |
