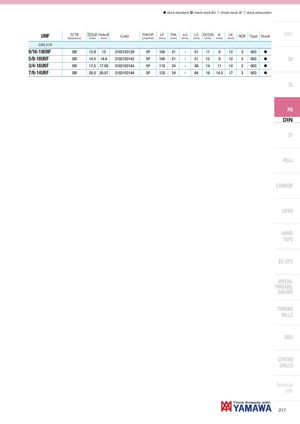

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion UNF TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock Intro DIN 374 9/16-18UNF 2BX 12.9 13 3102103129 5P 100 21 - 51 11 9 12 3 003 h 5/8-18UNF 2BX 14.5 14.6 3102103142 5P 100 21 - 51 12 9 12 3 003 h SP 3/4-16UNF 2BX 17.5 17.59 3102103164 5P 110 24 - 56 14 11 14 3 003 h 7/8-14UNF 2BX 20.5 20.57 3102103184 5P 125 24 - 64 18 14.5 17 3 003 h SL PO DIN ST ROLL CARBIDE LONG HAND TAPS EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS Technical info 217
