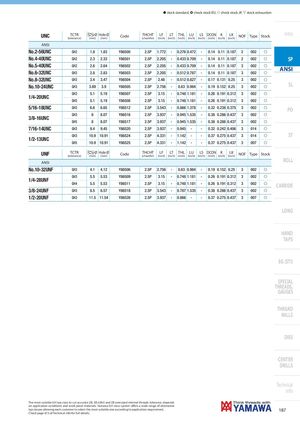

| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | LT ( inch ) | THL ( inch ) LU ( inch ) | LS ( inch ) | DCON ( inch ) K ( inch ) LK ( inch ) | NOF Type | Stock | Intro |
| ANSI | |||||||||||||
| No.2-56UNC | GH2 | 1.8 | 1.83 | Y86500 | 2.5P | 1.772 | - | 0.276 0.472 | - | 0.14 0.11 0.187 | 2 002 | f | |
| No.4-40UNC | GH2 | 2.3 | 2.33 | Y86501 | 2.5P | 2.205 | - | 0.433 0.709 | - | 0.14 0.11 0.187 | 2 002 | f | SP |
| No.5-40UNC | GH2 | 2.6 | 2.64 | Y86502 | 2.5P | 2.205 | - | 0.433 0.709 | - | 0.14 0.11 0.187 | 3 002 | f | |
| No.6-32UNC | GH3 | 2.8 | 2.83 | Y86503 | 2.5P | 2.205 | - | 0.512 0.787 | - | 0.14 0.11 0.187 | 3 002 | f | ANSI |
| No.8-32UNC | GH3 | 3.4 | 3.47 | Y86504 | 2.5P | 2.48 | - | 0.512 0.827 | - | 0.17 0.131 0.25 | 3 002 | f | |
| No.10-24UNC | GH3 | 3.89 | 3.9 | Y86505 | 2.5P | 2.756 | - | 0.63 0.984 | - | 0.19 0.152 0.25 | 3 002 | f | SL |
| GH3 | 5.1 | 5.19 | Y86507 | 2.5P | 3.15 | - | 0.748 1.181 | - | 0.26 0.191 0.312 | 3 002 | f | ||
| 1/4-20UNC | GH5 | 5.1 | 5.19 | Y86508 | 2.5P | 3.15 | - | 0.748 1.181 | - | 0.26 0.191 0.312 | 3 002 | f | |
| 5/16-18UNC | GH3 | 6.6 | 6.65 | Y86512 | 2.5P | 3.543 | - | 0.866 1.378 | - | 0.32 0.238 0.375 | 3 002 | f | PO |
| 3/816UNC | GH3 | 8 | 8.07 | Y86516 | 2.5P | 3.937 | - | 0.945 1.535 | - | 0.38 0.286 0.437 | 3 002 | f | |
| - | GH5 | 8 | 8.07 | Y86517 | 2.5P | 3.937 | - | 0.945 1.535 | - | 0.38 0.286 0.437 | 3 002 | f | |
| 7/16-14UNC | GH3 | 9.4 | 9.45 | Y86520 | 2.5P | 3.937 | - | 0.945 - | - | 0.32 0.242 0.406 | 3 014 | f | |
| 1/213UNC | GH3 | 10.9 | 10.91 | Y86524 | 2.5P | 4.331 | - | 1.142 - | - | 0.37 0.275 0.437 | 3 014 | f | ST |
| - | GH5 | 10.9 | 10.91 | Y86525 | 2.5P | 4.331 | - | 1.142 - | - | 0.37 0.275 0.437 | 3 007 | f | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | LT ( inch ) | THL ( inch ) LU ( inch ) | LS ( inch ) | DCON ( inch ) K ( inch ) LK ( inch ) | NOF Type | Stock | |
| ANSI | ROLL | ||||||||||||
| No.10-32UNF | GH3 | 4.1 | 4.12 | Y86506 | 2.5P | 2.756 | - | 0.63 0.984 | - | 0.19 0.152 0.25 | 3 002 | f | |
| GH3 | 5.5 | 5.53 | Y86509 | 2.5P | 3.15 | - | 0.748 1.181 | - | 0.26 0.191 0.312 | 3 002 | f | ||
| 1/4-28UNF | GH4 | 5.5 | 5.53 | Y86511 | 2.5P | 3.15 | - | 0.748 1.181 | - | 0.26 0.191 0.312 | 3 002 | f | CARBIDE |
| 3/8-24UNF | GH3 | 8.5 | 8.57 | Y86518 | 2.5P | 3.543 | - | 0.787 1.535 | - | 0.38 0.286 0.437 | 3 002 | f | |
| 1/2-20UNF | GH3 | 11.5 | 11.54 | Y86526 | 2.5P | 3.937 | - | 0.866 - | - | 0.37 0.275 0.437 | 3 007 | f | |
| LONG HAND TAPS EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES |
