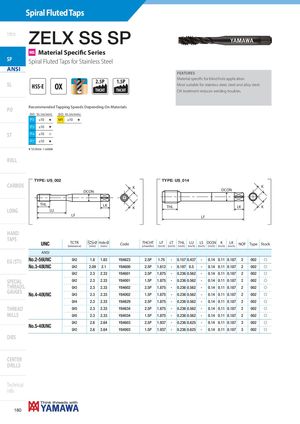

ZELX SS SP

MS Material Specifi c Series

SP Spiral Fluted Taps for Stainless Steel

ANSI

2.5P 1.5P

SL HSS-E OX

THCHT THCHT

PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)

P2≤10HM1≤10H
P3≤10H
STP4≤10I
P7≤10H

H 1st choice I suitable ROLL

FEATURES Material specifi c for blind hole application. Most suitable for stainless steel, steel and alloy steel. OX treatment reduces welding troubles.

ANSI-ZELX SS SP

CARBIDE

LONG

HAND

TAPS

TYPE: US_002

THL LU

LF

DCON

LK

TYPE: US_014 K K DCON

K THL LK K

LF

UNCTCTR (tolerance)Ø (mm)Hole Ø (mm)CodeTHCHT (chamfer)LF ( inch )LT ( inch )THL ( inch )LU ( inch )LS ( inch )DCON ( inch )K ( inch )LK ( inch )NOFTypeStock
ANSI
No.2-56UNCGH21.81.83Y846232.5P1.75-0.1570.437-0.140.110.1872002f
No.3-48UNCGH22.092.1Y846002.5P1.812-0.1970.5-0.140.110.1872002f
GH22.32.33Y846012.5P1.875-0.2360.562-0.140.110.1872002f
GH22.32.33Y840011.5P1.875-0.2360.562-0.140.110.1872002f
GH32.32.33Y846022.5P1.875-0.2360.562-0.140.110.1872002f
No.4-40UNCGH32.32.33Y840021.5P1.875-0.2360.562-0.140.110.1872002f
GH42.32.33Y846292.5P1.875-0.2360.562-0.140.110.1872002f
GH52.32.33Y846342.5P1.875-0.2360.562-0.140.110.1872002f
GH52.32.33Y840341.5P1.875-0.2360.562-0.140.110.1872002f
No5-40UNCGH22.62.64Y846032.5P1.937-0.2360.625-0.140.110.1873002f
.GH22.62.64Y840031.5P1.937-0.2360.625-0.140.110.1873002f
