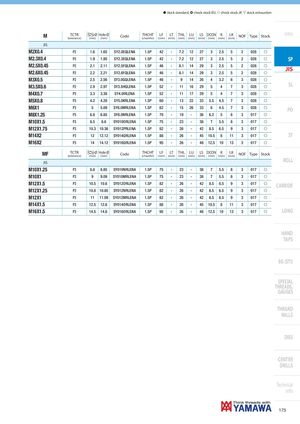

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | L ( m | K m ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||||
| M2X0.4 | P2 | 1.6 | 1.65 | SY2.0EQLENA | 1.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 028 | f | ||
| M2.3X0.4 | P2 | 1.9 | 1.95 | SY2.3EQLENA | 1.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 028 | f | SP | |
| M2.5X0.45 | P2 | 2.1 | 2.11 | SY2.5FQLENA | 1.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 028 | f | ||
| M2.6X0.45 | P2 | 2.2 | 2.21 | SY2.6FQLENA | 1.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 028 | f | JIS | |
| M3X0.5 | P2 | 2.5 | 2.56 | SY3.0GQLENA | 1.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 028 | f | ||
| M3.5X0.6 | P2 | 2.9 | 2.97 | SY3.5HQLENA | 1.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 028 | f | SL | |
| M4X0.7 | P3 | 3.3 | 3.38 | SY4.0IRLENA | 1.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 028 | f | ||
| M5X0.8 | P3 | 4.2 | 4.28 | SY5.0KRLENA | 1.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 028 | f | ||
| M6X1 | P3 | 5 | 5.09 | SY6.0MRLENA | 1.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 028 | f | PO | |
| M8X1.25 | P3 | 6.8 | 6.85 | SY8.0NRLENA | 1.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 017 | f | ||
| M10X1.5 | P3 | 8.5 | 8.6 | SY010ORLENA | 1.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 017 | f | ||
| M12X1.75 | P3 | 10.3 | 10.36 | SY012PRLENA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | f | ||
| M14X2 | P3 | 12 | 12.12 | SY014QRLENA | 1.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 1 | 1 | 3 | 017 | f | ST |
| M16X2 | P3 | 14 | 14.12 | SY016QRLENA | 1.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 1 | 3 | 3 | 017 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | L ( m | K m ) | NOF | Type | Stock | |
| JIS | ROLL | |||||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | SY010NRLENA | 1.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 017 | f | ||
| M10X1 | P3 | 9 | 9.09 | SY010MRLENA | 1.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 017 | f | ||
| M12X1.5 | P3 | 10.5 | 10.6 | SY012ORLENA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | f | CARBIDE | |
| M12X1.25 | P3 | 10.8 | 10.85 | SY012NRLENA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | f | ||
| M12X1 | P3 | 11 | 11.09 | SY012MRLENA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | f | ||
| M14X1.5 | P3 | 12.5 | 12.6 | SY014ORLENA | 1.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 1 | 1 | 3 | 017 | f | |
| M16X1.5 | P3 | 14.5 | 14.6 | SY016ORLENA | 1.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 1 | 3 | 3 | 017 | f | LONG |
