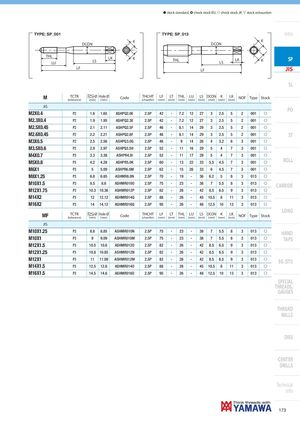

Общий каталог Yamawa 2021 - страница 172
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| TYPE: SP001 | D | CON | K | TY | PE: | SP01 | 3 | DC | ON | K | Intro | ||||||
| THL LU | LS | LK | K | T | HL | LS | L | K | K | SP | |||||||
| M | TCTR (tolerance) LF | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) LF | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SL JIS |
| JIS | PO | ||||||||||||||||
| M2X0.4 | P2 | 1.6 | 1.65 | ASHPQ2.0E | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f | |
| M2.3X0.4 | P2 | 1.9 | 1.95 | ASHPQ2.3E | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f | |
| M2.5X0.45 | P2 | 2.1 | 2.11 | ASHPQ2.5F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | |
| M2.6X0.45 | P2 | 2.2 | 2.21 | ASHPQ2.6F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | ST |
| M3X0.5 | P2 | 2.5 | 2.56 | ASHPQ3.0G | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| M3.5X0.6 | P2 | 2.9 | 2.97 | ASHPQ3.5H | 2.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| M4X0.7 | P3 | 3.3 | 3.38 | ASHPR4.0I | 2.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| M5X0.8 | P3 | 4.2 | 4.28 | ASHPR5.0K | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ROLL |
| M6X1 | P3 | 5 | 5.09 | ASHPR6.0M | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| M8X1.25 | P3 | 6.8 | 6.85 | ASHMR8.0N | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | |
| M10X1.5 | P3 | 8.5 | 8.6 | ASHMR010O | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | CARBIDE |
| M12X1.75 | P3 | 10.3 | 10.36 | ASHMR012P | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| M14X2 | P3 | 12 | 12.12 | ASHMR014Q | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| M16X2 | P3 | 14 | 14.12 | ASHMR016Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| JIS | |||||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | ASHMR010N | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | HAND |
| M10X1 | P3 | 9 | 9.09 | ASHMR010M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | TAPS |
| M12X1.5 | P3 | 10.5 | 10.6 | ASHMR012O | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| M12X1.25 | P3 | 10.8 | 10.85 | ASHMR012N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| M12X1 | P3 | 11 | 11.09 | ASHMR012M | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | EG (STI) |
| M14X1.5 | P3 | 12.5 | 12.6 | ASHMR014O | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| M16X1.5 | P3 | 14.5 | 14.6 | ASHMR016O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS |
