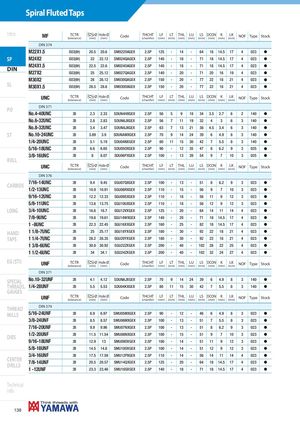

Общий каталог Yamawa 2021 - страница 137
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 374 | ||||||||||||||||
| M22X1.5 | ISO2(6H) | 20.5 | 20.6 | SM022OAGEX | 2.5P | 125 | - | 14 | - | 64 | 18 | 14.5 | 17 | 4 | 023 | h |
| M24X2 | ISO2(6H) | 22 | 22.12 | SM024QAGEX | 2.5P | 140 | - | 18 | - | 71 | 18 | 14.5 | 17 | 4 | 023 | h |
| M24X1.5 | ISO2(6H) | 22.5 | 22.6 | SM024OAGEX | 2.5P | 140 | - | 18 | - | 71 | 18 | 14.5 | 17 | 4 | 023 | h |
| M27X2 | ISO2(6H) | 25 | 25.12 | SM027QAGEX | 2.5P | 140 | - | 20 | - | 71 | 20 | 16 | 19 | 4 | 023 | h |
| M30X2 | ISO2(6H) | 28 | 28.12 | SM030QAGEX | 2.5P | 150 | - | 20 | - | 77 | 22 | 18 | 21 | 4 | 023 | h |
| M30X1.5 | ISO2(6H) | 28.5 | 28.6 | SM030OAGEX | 2.5P | 150 | - | 20 | - | 77 | 22 | 18 | 21 | 4 | 023 | h |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | ||||||||||||||||
| No.4-40UNC | 2B | 2.3 | 2.33 | SDUN4HXGEX | 2.5P | 56 | 5 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 2 | 140 | h |
| No.6-32UNC | 2B | 2.8 | 2.83 | SDUN6JXGEX | 2.5P | 56 | 7 | 11 | 19 | 32 | 4 | 3 | 6 | 3 | 140 | h |
| No.8-32UNC | 2B | 3.4 | 3.47 | SDUN8JXGEX | 2.5P | 63 | 7 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 140 | h |
| No.10-24UNC | 2B | 3.89 | 3.9 | SDUNAMXGEX | 2.5P | 70 | 9 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 140 | h |
| 1/4-20UNC | 2B | 5.1 | 5.19 | SDU04NXGEX | 2.5P | 80 | 11 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 140 | h |
| 5/16-18UNC | 2B | 6.6 | 6.65 | SDU05OXGEX | 2.5P | 90 | - | 12 | 35 | 47 | 8 | 6.2 | 9 | 3 | 025 | h |
| 3/8-16UNC | 2B | 8 | 8.07 | SDU06PXGEX | 2.5P | 100 | - | 13 | 39 | 54 | 9 | 7 | 10 | 3 | 025 | h |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 376 | ||||||||||||||||
| 7/16-14UNC | 2B | 9.4 | 9.45 | SGU07QXGEX | 2.5P | 100 | - | 13 | - | 51 | 8 | 6.2 | 9 | 3 | 023 | h |
| 1/2-13UNC | 2B | 10.9 | 10.91 | SGU08RXGEX | 2.5P | 110 | - | 15 | - | 56 | 9 | 7 | 10 | 3 | 023 | h |
| 9/16-12UNC | 2B | 12.2 | 12.33 | SGU09SXGEX | 2.5P | 110 | - | 18 | - | 56 | 11 | 9 | 12 | 3 | 023 | h |
| 5/8-11UNC | 2B | 13.6 | 13.75 | SGU10UXGEX | 2.5P | 110 | - | 18 | - | 56 | 12 | 9 | 12 | 3 | 023 | h |
| 3/4-10UNC | 2B | 16.6 | 16.7 | SGU12VXGEX | 2.5P | 125 | - | 20 | - | 64 | 14 | 11 | 14 | 4 | 023 | h |
| 7/8-9UNC | 2B | 19.6 | 19.61 | SGU14WXGEX | 2.5P | 140 | - | 20 | - | 71 | 18 | 14.5 | 17 | 4 | 023 | h |
| 1 -8UNC | 2B | 22.3 | 22.45 | SGU16XXGEX | 2.5P | 160 | - | 25 | - | 82 | 18 | 14.5 | 17 | 4 | 023 | h |
| 1 1/8-7UNC | 2B | 25 | 25.17 | SGU18YXGEX | 2.5P | 180 | - | 30 | - | 92 | 22 | 18 | 21 | 4 | 023 | h |
| 1 1/4-7UNC | 2B | 28.2 | 28.35 | SGU20YXGEX | 2.5P | 180 | - | 30 | - | 92 | 22 | 18 | 21 | 4 | 023 | h |
| 1 3/8-6UNC | 2B | 30.8 | 30.92 | SGU22ZXGEX | 2.5P | 200 | - | 40 | - | 102 | 28 | 22 | 25 | 4 | 023 | h |
| 1 1/2-6UNC | 2B | 34 | 34.1 | SGU24ZXGEX | 2.5P | 200 | - | 40 | - | 102 | 32 | 24 | 27 | 4 | 023 | h |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | ||||||||||||||||
| No.10-32UNF | 2B | 4.1 | 4.12 | SDUNAJXGEX | 2.5P | 70 | 9 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 140 | h |
| 1/4-28UNF | 2B | 5.5 | 5.53 | SDU04KXGEX | 2.5P | 80 | 11 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 140 | h |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 374 | ||||||||||||||||
| 5/16-24UNF | 2B | 6.9 | 6.97 | SMU05MXGEX | 2.5P | 90 | - | 12 | - | 46 | 6 | 4.9 | 8 | 3 | 023 | h |
| 3/8-24UNF | 2B | 8.5 | 8.57 | SMU06MXGEX | 2.5P | 100 | - | 13 | - | 51 | 7 | 5.5 | 8 | 3 | 023 | h |
| 7/16-20UNF | 2B | 9.9 | 9.96 | SMU07NXGEX | 2.5P | 100 | - | 13 | - | 51 | 8 | 6.2 | 9 | 3 | 023 | h |
| 1/2-20UNF | 2B | 11.5 | 11.54 | SMU08NXGEX | 2.5P | 100 | - | 15 | - | 51 | 9 | 7 | 10 | 3 | 023 | h |
| 9/16-18UNF | 2B | 12.9 | 13 | SMU09OXGEX | 2.5P | 100 | - | 14 | - | 51 | 11 | 9 | 12 | 3 | 023 | h |
| 5/8-18UNF | 2B | 14.5 | 14.6 | SMU10OXGEX | 2.5P | 100 | - | 14 | - | 51 | 12 | 9 | 12 | 3 | 023 | h |
| 3/4-16UNF | 2B | 17.5 | 17.59 | SMU12PXGEX | 2.5P | 110 | - | 14 | - | 56 | 14 | 11 | 14 | 4 | 023 | h |
| 7/8-14UNF | 2B | 20.5 | 20.57 | SMU14QXGEX | 2.5P | 125 | - | 20 | - | 64 | 18 | 14.5 | 17 | 4 | 023 | h |
| 1 -12UNF | 2B | 23.3 | 23.46 | SMU16SXGEX | 2.5P | 140 | - | 18 | - | 71 | 18 | 14.5 | 17 | 4 | 023 | h |
