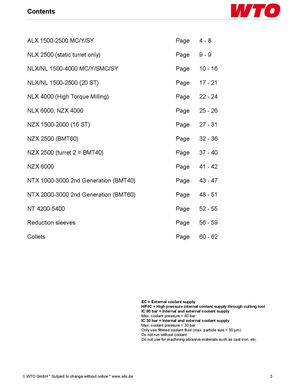

Contents ALX 1500-2500 MC/Y/SY Page 4-8 NLX 2500 (static turret only) Page 9-9 NLX/NL 1500-4000 MC/Y/SMC/SY Page 10 - 16 NLX/NL 1500-2500 (20 ST) Page 17 - 21 NLX 4000 (High Torque Milling) Page 22 - 24 NLX 6000, NZX 4000 Page 25 - 26 NZX 1500-2000 (16 ST) Page 27 - 31 NZX 2500 (BMT60) Page 32 - 36 NZX 2500 (turret 2 = BMT40) Page 37 - 40 NZX 6000 Page 41 - 42 NTX 1000-3000 2nd Generation (BMT40) Page 43 - 47 NTX 2000-3000 2nd Generation (BMT60) Page 48 - 51 NT 4200-5400 Page 52 - 55 Reduction sleeves Page 56 - 59 Collets Page 60 - 62 EC = External coolant supply HP-IC = High pressure internal coolant supply through cutting tool IC 80 bar = Internal and external coolant supply Max. coolant pressure = 80 bar IC 30 bar = Internal and external coolant supply Max. coolant pressure = 30 bar Only use filtered coolant fluid (max. particle size = 50 µm) Do not run without coolant Do not use for machining abrasive materials such as cast iron, etc. © WTO GmbH * Subject to change without notice * www.wto.de 3
