Каталог WTO инструмент под конкретные обрабатывающие центра - страница 361

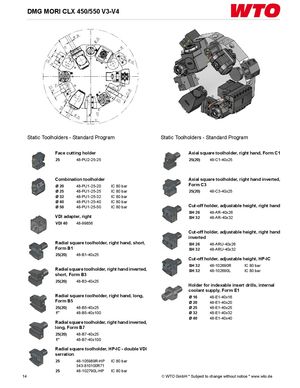

DMG MORI CLX 450/550 V3-V4 Static Toolholders - Standard Program Static Toolholders - Standard Program Face cutting holder Axial square toolholder, right hand, Form C1 25 48-PU2-25-25 25(20) 48-C1-40x25 Combination toolholder Axial square toolholder, right hand inverted, Ø 20 48-PU1-25-20 IC 80 bar Form C3 Ø 25 48-PU1-25-25 IC 80 bar 25(20) 48-C3-40x25 Ø 32 48-PU1-25-32 IC 80 bar Ø 40 48-PU1-25-40 IC 80 bar Ø 50 48-PU1-25-50 IC 80 bar Cut-off holder, adjustable height, right hand SH 26 48-AR-40x26 VDI adapter, right SH 32 48-AR-40x32 VDI 40 48-99856 Cut-off holder, adjustable height, right hand inverted Radial square toolholder, right hand, short, SH 26 48-ARU-40x26 Form B1 SH 32 48-ARU-40x32 25(20) 48-B1-40x25 Cut-off holder, adjustable height, HP-IC SH 32 48-102690R IC 80 bar Radial square toolholder, right hand inverted, SH 32 48-102690L IC 80 bar short, Form B3 25(20) 48-B3-40x25 Holder for indexable insert drills, internal coolant supply, Form E1 Radial square toolholder, right hand, long, Ø 16 48-E1-40x16 Form B5 Ø 20 48-E1-40x20 25(20) 48-B5-40x25 Ø 25 48-E1-40x25 1" 48-B5-40x100 Ø 32 48-E1-40x32 Ø 40 48-E1-40x40 Radial square toolholder, right hand inverted, long, Form B7 25(20) 48-B7-40x25 1" 48-B7-40x100 Radial square toolholder, HP-IC - double VDI serration 25 48-105989R-HP IC 80 bar 343-810100R71 25 48-102790L-HP IC 80 bar 14 © WTO GmbH * Subject to change without notice * www.wto.de
