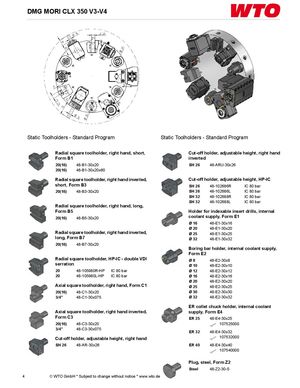

DMG MORI CLX 350 V3-V4 Static Toolholders - Standard Program Static Toolholders - Standard Program Radial square toolholder, right hand, short, Cut-off holder, adjustable height, right hand Form B1 inverted 20(16) 48-B1-30x20 SH 26 48-ARU-30x26 20(16) 48-B1-30x20x60 Radial square toolholder, right hand inverted, Cut-off holder, adjustable height, HP-IC short, Form B3 SH 26 48-102686R IC 80 bar 20(16) 48-B3-30x20 SH 26 48-102686L IC 80 bar SH 32 48-102688R IC 80 bar SH 32 48-102688L IC 80 bar Radial square toolholder, right hand, long, Form B5 Holder for indexable insert drills, internal 20(16) 48-B5-30x20 coolant supply, Form E1 Ø 16 48-E1-30x16 Ø 20 48-E1-30x20 Radial square toolholder, right hand inverted, Ø 25 48-E1-30x25 long, Form B7 Ø 32 48-E1-30x32 20(16) 48-B7-30x20 Boring bar holder, internal coolant supply, Form E2 Radial square toolholder, HP-IC - double VDI Ø8 48-E2-30x8 serration Ø 10 48-E2-30x10 20 48-105980R-HP IC 80 bar Ø 12 48-E2-30x12 20 48-105980L-HP IC 80 bar Ø 16 48-E2-30x16 Ø 20 48-E2-30x20 Axial square toolholder, right hand, Form C1 Ø 25 48-E2-30x25 20(16) 48-C1-30x20 Ø 30 48-E2-30x30 3/4" 48-C1-30x075 Ø 32 48-E2-30x32 ER collet chuck holder, internal coolant Axial square toolholder, right hand inverted, supply, Form E4 Form C3 ER 25 48-E4-30x25 20(16) 48-C3-30x20 107525000 3/4" 48-C3-30x075 ER 32 48-E4-30x32 Cut-off holder, adjustable height, right hand 107532000 SH 26 48-AR-30x26 ER 40 48-E4-30x40 107540000 Plug, steel, Form Z2 Steel 48-Z2-30-S 4 © WTO GmbH * Subject to change without notice * www.wto.de
