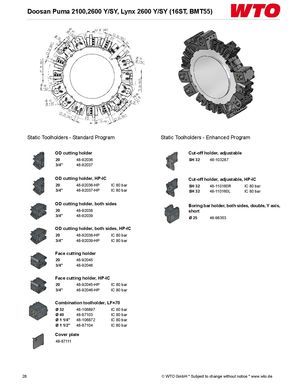

Doosan Puma 2100,2600 Y/SY, Lynx 2600 Y/SY (16ST, BMT55) Static Toolholders - Standard Program Static Toolholders - Enhanced Program OD cutting holder Cut-off holder, adjustable 20 48-92036 SH 32 48-103287 3/4" 48-92037 OD cutting holder, HP-IC Cut-off holder, adjustable, HP-IC 20 48-92036-HP IC 80 bar SH 32 48-110160R IC 80 bar 3/4" 48-92037-HP IC 80 bar SH 32 48-110160L IC 80 bar OD cutting holder, both sides Boring bar holder, both sides, double, Y axis, 20 48-92038 short 3/4" 48-92039 Ø 25 48-98353 OD cutting holder, both sides, HP-IC 20 48-92038-HP IC 80 bar 3/4" 48-92039-HP IC 80 bar Face cutting holder 20 48-92045 3/4" 48-92046 Face cutting holder, HP-IC 20 48-92045-HP IC 80 bar 3/4" 48-92046-HP IC 80 bar Combination toolholder, LF=70 Ø 32 48-106897 IC 80 bar Ø 40 48-87103 IC 80 bar Ø 1 1/4" 48-106872 IC 80 bar Ø 1 1/2" 48-87104 IC 80 bar Cover plate 48-87111 28 © WTO GmbH * Subject to change without notice * www.wto.de
