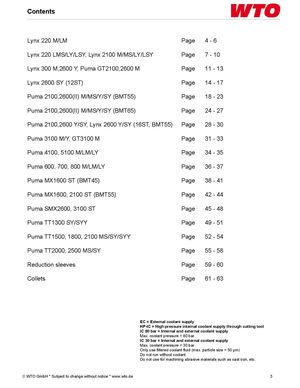

Contents Lynx 220 M/LM Page 4-6 Lynx 220 LMS/LY/LSY, Lynx 2100 M/MS/LY/LSY Page 7 - 10 Lynx 300 M,2600 Y, Puma GT2100,2600 M Page 11 - 13 Lynx 2600 SY (12ST) Page 14 - 17 Puma 2100,2600(II) M/MS/Y/SY (BMT55) Page 18 - 23 Puma 2100,2600(II) M/MS/Y/SY (BMT65) Page 24 - 27 Puma 2100,2600 Y/SY, Lynx 2600 Y/SY (16ST, BMT55) Page 28 - 30 Puma 3100 M/Y, GT3100 M Page 31 - 33 Puma 4100, 5100 M/LM/LY Page 34 - 35 Puma 600, 700, 800 M/LM/LY Page 36 - 37 Puma MX1600 ST (BMT45) Page 38 - 41 Puma MX1600, 2100 ST (BMT55) Page 42 - 44 Puma SMX2600, 3100 ST Page 45 - 48 Puma TT1300 SY/SYY Page 49 - 51 Puma TT1500, 1800, 2100 MS/SY/SYY Page 52 - 54 Puma TT2000, 2500 MS/SY Page 55 - 58 Reduction sleeves Page 59 - 60 Collets Page 61 - 63 EC = External coolant supply HP-IC = High pressure internal coolant supply through cutting tool IC 80 bar = Internal and external coolant supply Max. coolant pressure = 80 bar IC 30 bar = Internal and external coolant supply Max. coolant pressure = 30 bar Only use filtered coolant fluid (max. particle size = 50 µm) Do not run without coolant Do not use for machining abrasive materials such as cast iron, etc. © WTO GmbH * Subject to change without notice * www.wto.de 3
