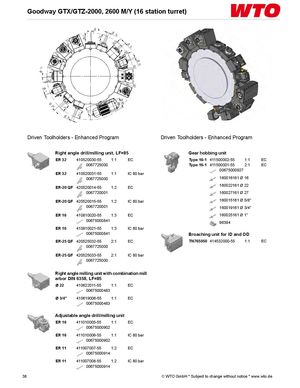

Goodway GTX/GTZ-2000, 2600 M/Y (16 station turret) Driven Toolholders - Enhanced Program Driven Toolholders - Enhanced Program Right angle drill/milling unit, LF=85 Gear hobbing unit ER 32 410520030-55 1:1 EC Type 16-1 411500002-55 1:1 EC 0067725000 Type 16-1 411500001-55 2:1 EC 00675000927 ER 32 410520031-55 1:1 IC 80 bar 0067725000 160016161 Ø 16 ER-20 QF 420520014-55 1:2 EC 160022161 Ø 22 0067720001 160027161 Ø 27 ER-20 QF 420520015-55 1:2 IC 80 bar 160015161 Ø 5/8" 0067720001 160019161 Ø 3/4" ER 16 410810020-55 1:3 EC 160025161 Ø 1" 00675000841 96394 ER 16 410810021-55 1:3 IC 80 bar 00675000841 Broaching unit for ID and OD ER-25 QF 420525032-55 2:1 EC TN765050 414532000-55 1:1 EC 0067725000 ER-25 QF 420525033-55 2:1 IC 80 bar 0067725000 Right angle milling unit with combination mill arbor DIN 6358, LF=85 Ø 22 410622011-55 1:1 EC 00675000483 Ø 3/4" 410619006-55 1:1 EC 00675000483 Adjustable angle drill/milling unit ER 16 411010005-55 1:1 EC 00675000902 ER 16 411010006-55 1:1 IC 80 bar 00675000902 ER 11 411007007-55 1:2 EC 00675000914 ER 11 411007008-55 1:2 IC 80 bar 00675000914 38 © WTO GmbH * Subject to change without notice * www.wto.de
