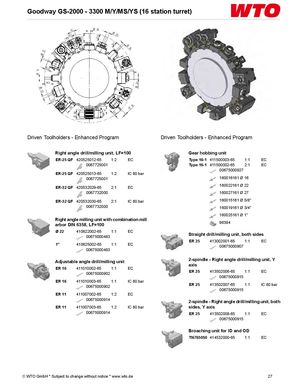

Goodway GS-2000 - 3300 M/Y/MS/YS (16 station turret) Driven Toolholders - Enhanced Program Driven Toolholders - Enhanced Program Right angle drill/milling unit, LF=100 Gear hobbing unit ER-25 QF 420525012-65 1:2 EC Type 16-1 411500003-65 1:1 EC 0067725001 Type 16-1 411500002-65 2:1 EC 00675000927 ER-25 QF 420525013-65 1:2 IC 80 bar 0067725001 160016161 Ø 16 ER-32 QF 420532029-65 2:1 EC 160022161 Ø 22 0067732000 160027161 Ø 27 ER-32 QF 420532030-65 2:1 IC 80 bar 160015161 Ø 5/8" 0067732000 160019161 Ø 3/4" 160025161 Ø 1" Right angle milling unit with combination mill arbor DIN 6358, LF=100 96394 Ø 22 410622002-65 1:1 EC 00675000483 Straight drill/milling unit, both sides ER 25 413002001-65 1:1 EC 1" 410625002-65 1:1 EC 00675000907 00675000483 Adjustable angle drill/milling unit 2-spindle - Right angle drill/milling unit, Y axis ER 16 411010002-65 1:1 EC 00675000902 ER 25 413502006-65 1:1 EC 00675000915 ER 16 411010003-65 1:1 IC 80 bar 00675000902 ER 25 413502007-65 1:1 IC 80 bar 00675000915 ER 11 411007002-65 1:2 EC 00675000914 2-spindle - Right angle drill/milling unit, both ER 11 411007003-65 1:2 IC 80 bar sides, Y axis 00675000914 ER 25 413502008-65 1:1 EC 00675000915 Broaching unit for ID and OD TN765050 414532000-65 1:1 EC © WTO GmbH * Subject to change without notice * www.wto.de 27
