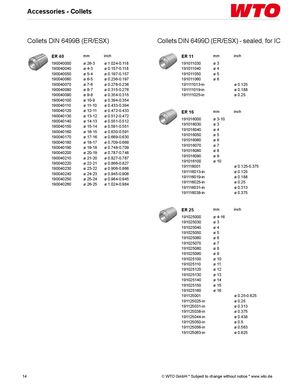

Accessories - Collets Collets DIN 6499B (ER/ESX) Collets DIN 6499D (ER/ESX) - sealed, for IC ER 40 mm inch ER 11 mm inch 190040000 ø 26-3 ø 1.024-0.118 191011030 ø3 190040040 ø 4-3 ø 0.157-0.118 191011040 ø4 190040050 ø 5-4 ø 0.197-0.157 191011050 ø5 190040060 ø 6-5 ø 0.236-0.197 191011060 ø6 190040070 ø 7-6 ø 0.276-0.236 191111013-in ø 0.125 190040080 ø 8-7 ø 0.315-0.276 191111019-in ø 0.188 190040090 ø 9-8 ø 0.354-0.315 191111025-in ø 0.25 190040100 ø 10-9 ø 0.394-0.354 190040110 ø 11-10 ø 0.433-0.394 190040120 ø 12-11 ø 0.472-0.433 ER 16 mm inch 190040130 ø 13-12 ø 0.512-0.472 190040140 ø 14-13 ø 0.551-0.512 191016000 ø 3-10 190040150 ø 15-14 ø 0.591-0.551 191016030 ø3 190040160 ø 16-15 ø 0.630-0.591 191016040 ø4 190040170 ø 17-16 ø 0.669-0.630 191016050 ø5 190040180 ø 18-17 ø 0.709-0.669 191016060 ø6 190040190 ø 19-18 ø 0.748-0.709 191016070 ø7 190040200 ø 20-19 ø 0.787-0.748 191016080 ø8 190040210 ø 21-20 ø 0.827-0.787 191016090 ø9 190040220 ø 22-21 ø 0.866-0.827 191016100 ø 10 190040230 ø 23-22 ø 0.906-0.866 191116001 ø 0.125-0.375 190040240 ø 24-23 ø 0.945-0.906 191116013-in ø 0.125 190040250 ø 25-24 ø 0.984-0.945 191116019-in ø 0.188 190040260 ø 26-25 ø 1.024-0.984 191116025-in ø 0.25 191116031-in ø 0.313 191116038-in ø 0.375 ER 25 mm inch 191025000 ø 4-16 191025030 ø3 191025040 ø4 191025050 ø5 191025060 ø6 191025070 ø7 191025080 ø8 191025090 ø9 191025100 ø 10 191025110 ø 11 191025120 ø 12 191025130 ø 13 191025140 ø 14 191025150 ø 15 191025160 ø 16 191125001 ø 0.25-0.625 191125025-in ø 0.25 191125031-in ø 0.313 191125038-in ø 0.375 191125044-in ø 0.438 191125050-in ø 0.5 191125056-in ø 0.563 191125063-in ø 0.625 14 © WTO GmbH * Subject to change without notice * www.wto.de
