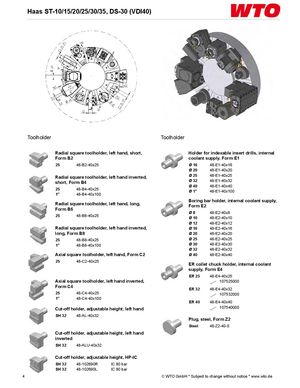

Каталог WTO инструмент под конкретные обрабатывающие центра - страница 226

Haas ST-10/15/20/25/30/35, DS-30 (VDI40) Toolholder Toolholder Radial square toolholder, left hand, short, Holder for indexable insert drills, internal Form B2 coolant supply, Form E1 25 48-B2-40x25 Ø 16 48-E1-40x16 Ø 20 48-E1-40x20 Radial square toolholder, left hand inverted, Ø 25 48-E1-40x25 short, Form B4 Ø 32 48-E1-40x32 Ø 40 48-E1-40x40 25 48-B4-40x25 Ø 1" 48-E1-40x100 1" 48-B4-40x100 Boring bar holder, internal coolant supply, Radial square toolholder, left hand, long, Form E2 Form B6 Ø8 48-E2-40x8 25 48-B6-40x25 Ø 10 48-E2-40x10 Ø 12 48-E2-40x12 Radial square toolholder, left hand inverted, Ø 16 48-E2-40x16 long, Form B8 Ø 20 48-E2-40x20 25 48-B8-40x25 Ø 25 48-E2-40x25 1" 48-B8-40x100 Ø 30 48-E2-40x30 Ø 32 48-E2-40x32 Axial square toolholder, left hand, Form C2 Ø 40 48-E2-40x40 25 48-C2-40x25 ER collet chuck holder, internal coolant supply, Form E4 ER 25 48-E4-40x25 Axial square toolholder, left hand inverted, 107525000 Form C4 ER 32 48-E4-40x32 25 48-C4-40x25 107532000 1" 48-C4-40x100 ER 40 48-E4-40x40 Cut-off holder, adjustable height, left hand 107540000 SH 32 48-AL-40x32 Plug, steel, Form Z2 Steel 48-Z2-40-S Cut-off holder, adjustable height, left hand inverted SH 32 48-ALU-40x32 Cut-off holder, adjustable height, HP-IC SH 32 48-102690R IC 80 bar SH 32 48-102690L IC 80 bar 4 © WTO GmbH * Subject to change without notice * www.wto.de
