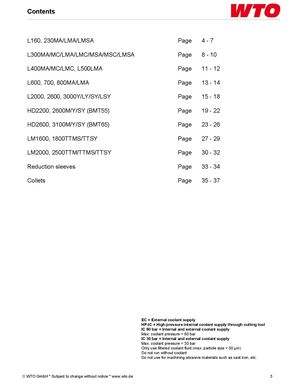

Contents L160, 230MA/LMA/LMSA Page 4-7 L300MA/MC/LMA/LMC/MSA/MSC/LMSA Page 8 - 10 L400MA/MC/LMC, L500LMA Page 11 - 12 L600, 700, 800MA/LMA Page 13 - 14 L2000, 2600, 3000Y/LY/SY/LSY Page 15 - 18 HD2200, 2600M/Y/SY (BMT55) Page 19 - 22 HD2600, 3100M/Y/SY (BMT65) Page 23 - 26 LM1600, 1800TTMS/TTSY Page 27 - 29 LM2000, 2500TTM/TTMS/TTSY Page 30 - 32 Reduction sleeves Page 33 - 34 Collets Page 35 - 37 EC = External coolant supply HP-IC = High pressure internal coolant supply through cutting tool IC 80 bar = Internal and external coolant supply Max. coolant pressure = 80 bar IC 30 bar = Internal and external coolant supply Max. coolant pressure = 30 bar Only use filtered coolant fluid (max. particle size = 50 µm) Do not run without coolant Do not use for machining abrasive materials such as cast iron, etc. © WTO GmbH * Subject to change without notice * www.wto.de 3
