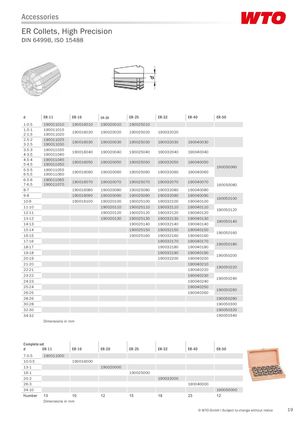

Каталог WTO инструмент для обрабатывающих центров - страница 77
Навигация
Брошюра WTO обзор решений
Брошюра WTO обзор решений русский
Каталог WTO инструмент под конкретные обрабатывающие центра
Каталог WTO инструмент для обрабатывающих центров швейцарского типа
Принадлежности
Цанги ER, высокой точности
DIN 6499B, ISO 15488
| d | ER-11 | ER-16 | ER-20 | ER-25 | ER-32 | ER-40 | ER-50 |
|---|---|---|---|---|---|---|---|
| 1-0.5 | 190011010 | 190016010 | 190020010 | 190025010 | |||
| 1.5-1 | 190011015 | 190016020 | 190020020 | 190025020 | 190032020 | ||
| 2-1.5 | 190011020 | ||||||
| 2.5-2 | 190011025 | 190016030 | 190020030 | 190025030 | 190032030 | 190040030 | |
| 3-2.5 | 190011030 | ||||||
| 3.5-3 | 190011035 | 190016040 | 190020040 | 190025040 | 190032040 | 190040040 | |
| 4-3.5 | 190011040 | ||||||
| 4.5-4 | 190011045 | 190016050 | 190020050 | 190025050 | 190032050 | 190040050 | 190050060 |
| 5-4.5 | 190011050 | ||||||
| 5.5-5 | 190011055 | 190016060 | 190020060 | 190025060 | 190032060 | 190040060 | |
| 6-5.5 | 190011060 | ||||||
| 6.5-6 | 190011065 | 190016070 | 190020070 | 190025070 | 190032070 | 190040070 | 190050080 |
| 7-6.5 | 190011070 | ||||||
| 8-7 | 190016080 | 190020080 | 190025080 | 190032080 | 190040080 | ||
| 9-8 | 190016090 | 190020090 | 190025090 | 190032090 | 190040090 | 190050100 | |
| 10-9 | 190016100 | 190020100 | 190025100 | 190032100 | 190040100 | ||
| 11-10 | 190020110 | 190025110 | 190032110 | 190040110 | 190050120 | ||
| 12-11 | 190020120 | 190025120 | 190032120 | 190040120 | |||
| 13-12 | 190020130 | 190025130 | 190032130 | 190040130 | 190050140 | ||
| 14-13 | 190025140 | 190032140 | 190040140 | ||||
| 15-14 | 190025150 | 190032150 | 190040150 | 190050160 | |||
| 16-15 | 190025160 | 190032160 | 190040160 | ||||
| 17-16 | 190032170 | 190040170 | 190050180 | ||||
| 18-17 | 190032180 | 190040180 | |||||
| 19-18 | 190032190 | 190040190 | 190050200 | ||||
| 20-19 | 190032200 | 190040200 | |||||
| 21-20 | 190040210 | 190050220 | |||||
| 22-21 | 190040220 | ||||||
| 23-22 | 190040230 | 190050240 | |||||
| 24-23 | 190040240 | ||||||
| 25-24 | 190040250 | 190050260 | |||||
| 26-25 | 190040260 | ||||||
| 28-26 | 190050280 | ||||||
| 30-28 | 190050300 | ||||||
| 32-30 | 190050320 | ||||||
| 34-32 | 190050340 |
Размеры в мм
Полный комплект
| d | ER-11 | ER-16 | ER-20 | ER-25 | ER-32 | ER-40 | ER-50 |
|---|---|---|---|---|---|---|---|
| 7-0.5 | 190011000 | ||||||
| 10-0.5 | 190016000 | ||||||
| 13-1 | 190020000 | ||||||
| 16-1 | 190025000 | ||||||
| 20-2 | 190032000 | ||||||
| 26-3 | 190040000 | ||||||
| 34-10 | 190050000 | ||||||
| Количество | 13 | 10 | 12 | 15 | 18 | 23 | 12 |
Размеры в мм
