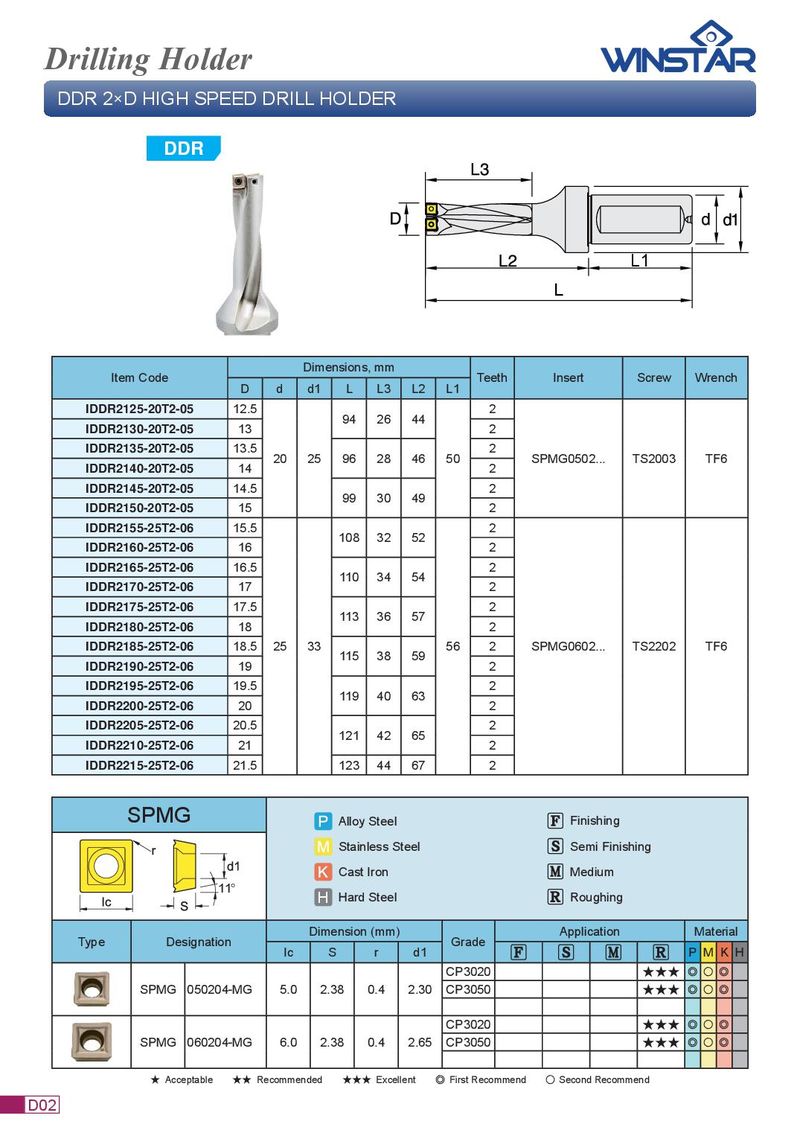

Drilling Holder DDR 2×D HIGH SPEED DRILL HOLDER DDR L1 Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDDR2125-20T2-05 12.5 2 94 26 44 IDDR2130-20T2-05 13 2 IDDR2135-20T2-05 13.5 2 20 25 96 28 46 50 SPMG0502... TS2003 TF6 IDDR2140-20T2-05 14 2 IDDR2145-20T2-05 14.5 2 99 30 49 IDDR2150-20T2-05 15 2 IDDR2155-25T2-06 15.5 2 108 32 52 IDDR2160-25T2-06 16 2 IDDR2165-25T2-06 16.5 2 110 34 54 IDDR2170-25T2-06 17 2 IDDR2175-25T2-06 17.5 2 113 36 57 IDDR2180-25T2-06 18 2 IDDR2185-25T2-06 18.5 25 33 56 2 SPMG0602... TS2202 TF6 115 38 59 IDDR2190-25T2-06 19 2 IDDR2195-25T2-06 19.5 2 119 40 63 IDDR2200-25T2-06 20 2 IDDR2205-25T2-06 20.5 2 121 42 65 IDDR2210-25T2-06 21 2 IDDR2215-25T2-06 21.5 123 44 67 2 SPMG Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium 11° H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade Ic S r d1 P M K H CP3020 ★★★ ◎ ○ ◎ SPMG 050204-MG 5.0 2.38 0.4 2.30 CP3050 ★★★ ◎ ○ ◎ CP3020 ★★★ ◎ ○ ◎ SPMG 060204-MG 6.0 2.38 0.4 2.65 CP3050 ★★★ ◎ ○ ◎ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend D02
