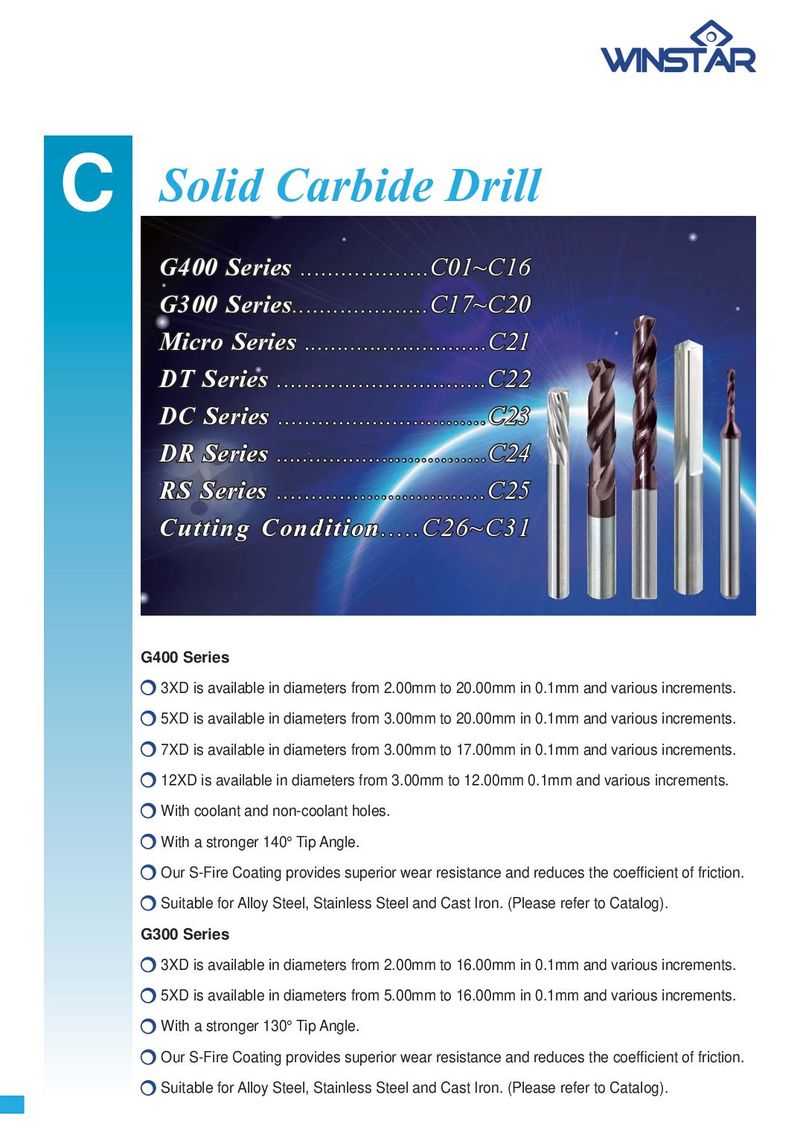

Solid Carbide Drill C G400 Series G400 Series ...................C01~C16 ...................C01~C16 G300 Series G300 Series....................C17~C20 ....................C17~C20 Micro Series Micro Series ............................C21 ............................C21 DT Series DT Series ...............................C22 ...............................C22 DC Series DC Series ...............................C23 ...............................C23 DR Series DR Series ................................C24 ................................C24 RS Series RS Series ..............................C25 ..............................C25 C u t t i n g C o n d i t i o n Cutting Condition.....C26~C31 .....C26~C31 G400 Series 3XD is available in diameters from 2.00mm to 20.00mm in 0.1mm and various increments. 5XD is available in diameters from 3.00mm to 20.00mm in 0.1mm and various increments. 7XD is available in diameters from 3.00mm to 17.00mm in 0.1mm and various increments. 12XD is available in diameters from 3.00mm to 12.00mm 0.1mm and various increments. With coolant and non-coolant holes. With a stronger 140° Tip Angle. Our S-Fire Coating provides superior wear resistance and reduces the coeffi cient of friction. Suitable for Alloy Steel, Stainless Steel and Cast Iron. (Please refer to Catalog). G300 Series 3XD is available in diameters from 2.00mm to 16.00mm in 0.1mm and various increments. 5XD is available in diameters from 5.00mm to 16.00mm in 0.1mm and various increments. With a stronger 130° Tip Angle. Our S-Fire Coating provides superior wear resistance and reduces the coeffi cient of friction. Suitable for Alloy Steel, Stainless Steel and Cast Iron. (Please refer to Catalog).
