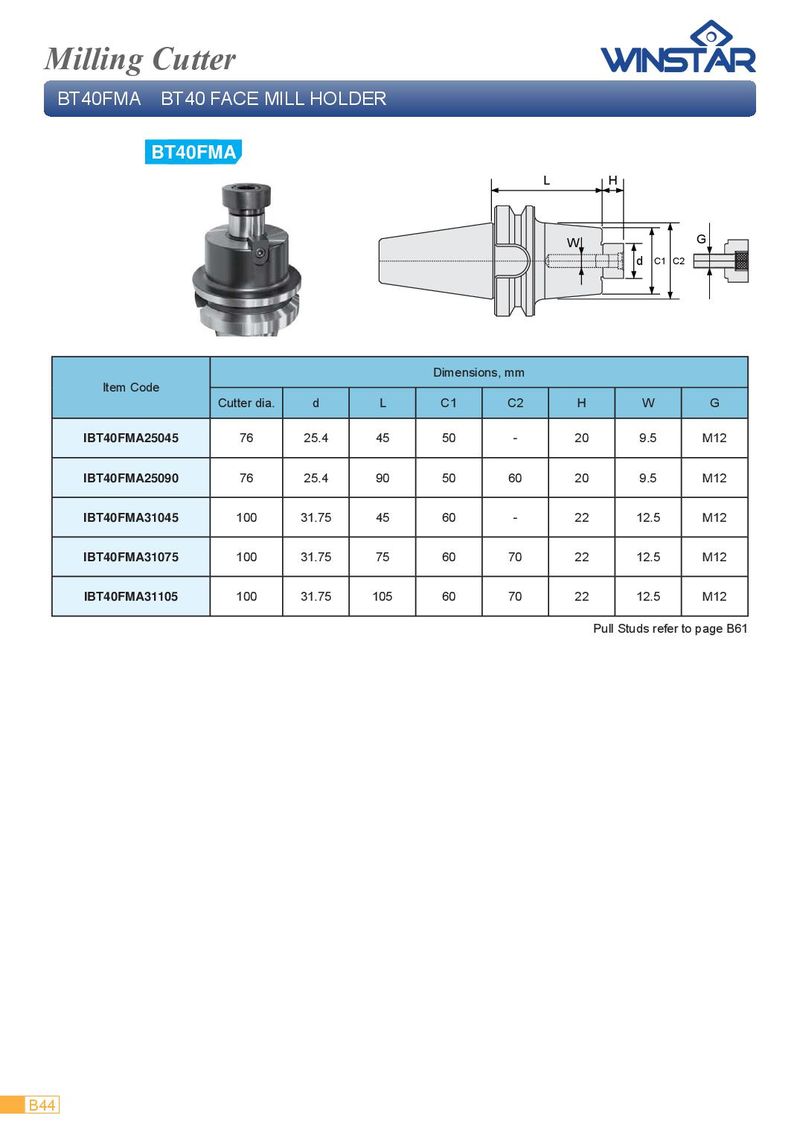

Milling Cutter BT40FMA BT40 FACE MILL HOLDER BT40FMA L H W G d C1 C2 Dimensions, mm Item Code Cutter dia. d L C1 C2 H W G IBT40FMA25045 76 25.4 45 50 - 20 9.5 M12 IBT40FMA25090 76 25.4 90 50 60 20 9.5 M12 IBT40FMA31045 100 31.75 45 60 - 22 12.5 M12 IBT40FMA31075 100 31.75 75 60 70 22 12.5 M12 IBT40FMA31105 100 31.75 105 60 70 22 12.5 M12 Pull Studs refer to page B61 B44
