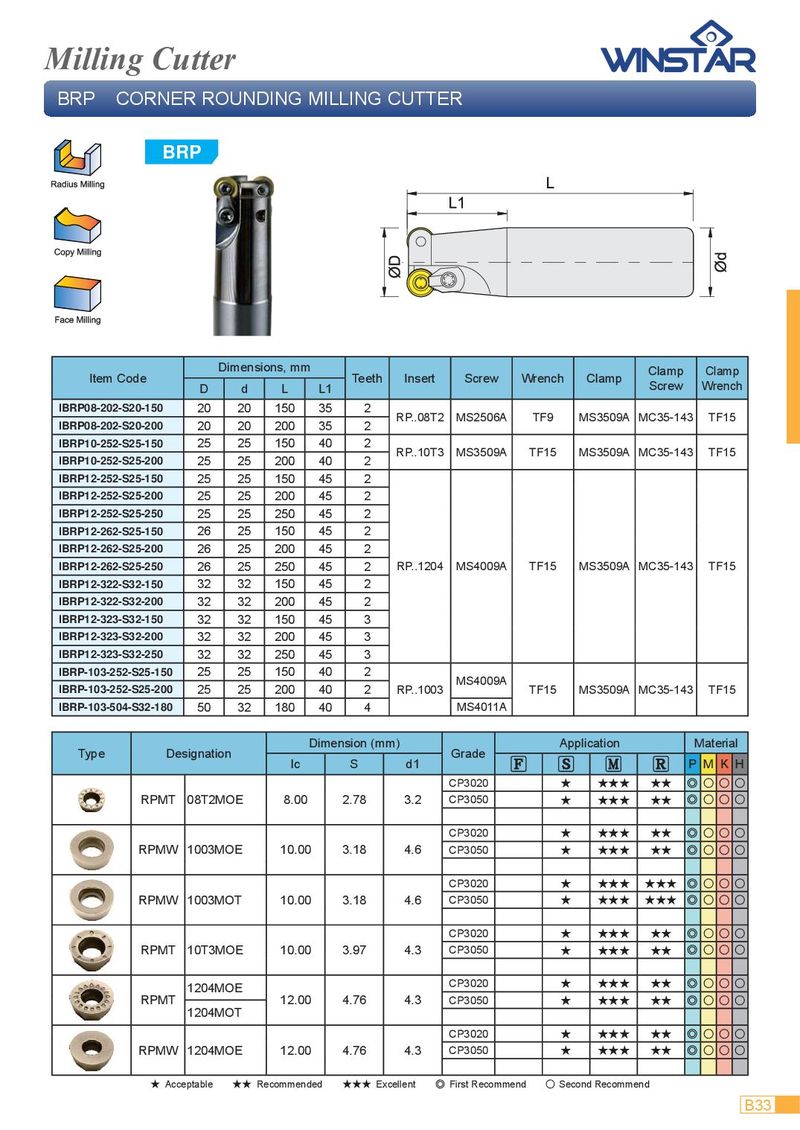

Milling Cutter BRP CORNER ROUNDING MILLING CUTTER BRP Dimensions, mm Clamp Clamp Item Code Teeth Insert Screw Wrench Clamp D d L L1 Screw Wrench IBRP08-202-S20-150 20 20 150 35 2 RP..08T2 MS2506A TF9 MS3509A MC35-143 TF15 IBRP08-202-S20-200 20 20 200 35 2 IBRP10-252-S25-150 25 25 150 40 2 RP..10T3 MS3509A TF15 MS3509A MC35-143 TF15 IBRP10-252-S25-200 25 25 200 40 2 IBRP12-252-S25-150 25 25 150 45 2 IBRP12-252-S25-200 25 25 200 45 2 IBRP12-252-S25-250 25 25 250 45 2 IBRP12-262-S25-150 26 25 150 45 2 IBRP12-262-S25-200 26 25 200 45 2 IBRP12-262-S25-250 26 25 250 45 2 RP..1204 MS4009A TF15 MS3509A MC35-143 TF15 IBRP12-322-S32-150 32 32 150 45 2 IBRP12-322-S32-200 32 32 200 45 2 IBRP12-323-S32-150 32 32 150 45 3 IBRP12-323-S32-200 32 32 200 45 3 IBRP12-323-S32-250 32 32 250 45 3 IBRP-103-252-S25-150 25 25 150 40 2 MS4009A IBRP-103-252-S25-200 25 25 200 40 2 RP..1003 TF15 MS3509A MC35-143 TF15 IBRP-103-504-S32-180 50 32 180 40 4 MS4011A Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RPMT 08T2MOE 8.00 2.78 3.2 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RPMW 1003MOE 10.00 3.18 4.6 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★★ ◎ ○ ○ ○ RPMW 1003MOT 10.00 3.18 4.6 CP3050 ★ ★★★ ★★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RPMT 10T3MOE 10.00 3.97 4.3 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ 1204MOE RPMT 12.00 4.76 4.3 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ 1204MOT CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RPMW 1204MOE 12.00 4.76 4.3 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B33
