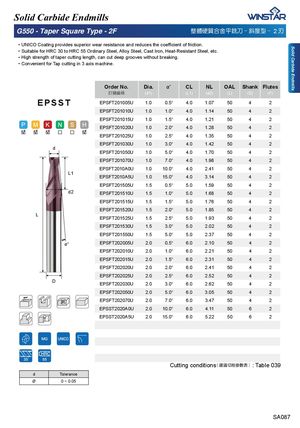

Solid Carbide Endmills Solid Carbide Endmills G550 - Taper Square Type - 2F 㜃汣䧻幹▗捠。搠⎏ . 㜫〵⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚHigh strength of taper cutting length, can cut deep grooves without breaking. ᅚConvenient for Tap cutting in 3 axis machine. Order No. Dia. ĮÛ CL NL OAL Shank Flutes 宑庋佷䩋 (d1) (L1) (d2) (L) (D) (F) EPSST EPSFT201005U 1.0 0.5° 4.0 1.07 50 4 2 EPSFT201010U 1.0 1.0° 4.0 1.14 50 4 2 EPSFT201015U 1.0 1.5° 4.0 1.21 50 4 2 EPSFT201020U 1.0 2.0° 4.0 1.28 50 4 2 EPSFT201025U 1.0 2.5° 4.0 1.35 50 4 2 EPSFT201030U 1.0 3.0° 4.0 1.42 50 4 2 d EPSFT201050U 1.0 5.0° 4.0 1.70 50 4 2 EPSFT201070U 1.0 7.0° 4.0 1.98 50 4 2 EPSFT2010A0U 1.0 10.0° 4.0 2.41 50 4 2 L1 EPSFT2010A5U 1.0 15.0° 4.0 3.14 50 4 2 EPSFT201505U 1.5 0.5° 5.0 1.59 50 4 2 d2 EPSFT201510U 1.5 1.0° 5.0 1.68 50 4 2 EPSFT201515U 1.5 1.5° 5.0 1.76 50 4 2 EPSFT201520U 1.5 2.0° 5.0 1.85 50 4 2 L EPSFT201525U 1.5 2.5° 5.0 1.93 50 4 2 EPSFT201530U 1.5 3.0° 5.0 2.02 50 4 2 EPSFT201550U 1.5 5.0° 5.0 2.37 50 4 2 Į° EPSFT202005U 2.0 0.5° 6.0 2.10 50 4 2 EPSFT202010U 2.0 1.0° 6.0 2.21 50 4 2 EPSFT202015U 2.0 1.5° 6.0 2.31 50 4 2 EPSFT202020U 2.0 2.0° 6.0 2.41 50 4 2 EPSFT202025U 2.0 2.5° 6.0 2.52 50 4 2 D EPSFT202030U 2.0 3.0° 6.0 2.62 50 4 2 EPSFT202050U 2.0 5.0° 6.0 3.05 50 4 2 EPSFT202070U 2.0 7.0° 6.0 3.47 50 4 2 EPSST2020A0U 2.0 10.0° 6.0 4.11 50 6 2 EPSST2020A5U 2.0 15.0° 6.0 5.22 50 6 2 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 039 d Tolerance Ø 0 ~ 0.05 SA087
