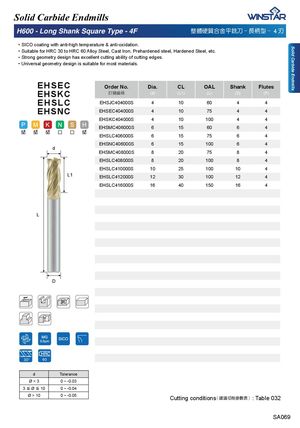

H600 - Long Shank Square Type - 4F 㜃汣䧻幹▗捠。搠⎏ . 朆㥓⤚ .!4 ⎒
ᅚSICO coating with anti-high temperature & anti-oxidation. ᅚSuitable for HRC 30 to HRC 60 Alloy Steel, Cast Iron, Prehardened steel, Hardened Steel, etc. ᅚStrong geometry design has excellent cutting ability of cutting edges. ᅚUniversal geometry design is suitable for most materials.
EHSEC
| Order No. ���� | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHSJC404000S | 4 | 10 | 60 | 4 | 4 |
| EHSEC404000S | 4 | 10 | 75 | 4 | 4 |
| EHSKC404000S | 4 | 10 | 100 | 4 | 4 |
| EHSMC406000S | 6 | 15 | 60 | 6 | 4 |
| EHSLC406000S | 6 | 15 | 75 | 6 | 4 |
| EHSNC406000S | 6 | 15 | 100 | 6 | 4 |
| EHSMC408000S | 8 | 20 | 75 | 8 | 4 |
| EHSLC408000S | 8 | 20 | 100 | 8 | 4 |
| EHSLC410000S | 10 | 25 | 100 | 10 | 4 |
| EHSLC412000S | 12 | 30 | 100 | 12 | 4 |
| EHSLC416000S | 16 | 40 | 150 | 16 | 4 |
EHSKC
EHSLC
d
L
D
30° 60
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3��10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
