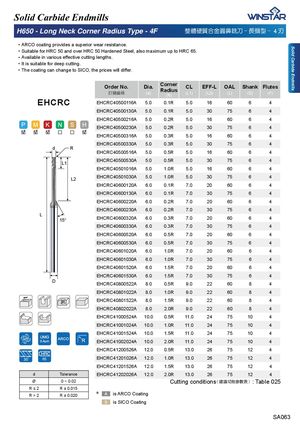

Каталог Winstar монолитный инструмент 2020 - страница 73
Навигация
Общий каталог Winstar 2015 - 2016
Брошюра Winstar пластины 2021
Каталог Winstar сверление
Каталог Winstar инструмент со сменными пластинами 2020
Каталог Winstar твердосплавные пластины и вставки
Брошюра Winstar основная номенклатура 2021
ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚ$YDLODEOHLQYDULRXVHႇHFWLYHFXWWLQJOHQJWKV ᅚIt is suitable for deep cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | Corner Radius (R) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHCRC40500116A | 5.0 | 0.1R | 5.0 | 16 | 60 | 6 | 4 |
| EHCRC40500130A | 5.0 | 0.1R | 5.0 | 30 | 75 | 6 | 4 |
| EHCRC40500216A | 5.0 | 0.2R | 5.0 | 16 | 60 | 6 | 4 |
| EHCRC40500230A | 5.0 | 0.2R | 5.0 | 30 | 75 | 6 | 4 |
| EHCRC40500316A | 5.0 | 0.3R | 5.0 | 16 | 60 | 6 | 4 |
| EHCRC40500330A | 5.0 | 0.3R | 5.0 | 30 | 75 | 6 | 4 |
| EHCRC40500516A | 5.0 | 0.5R | 5.0 | 16 | 60 | 6 | 4 |
| EHCRC40500530A | 5.0 | 0.5R | 5.0 | 30 | 75 | 6 | 4 |
| EHCRC40501016A | 5.0 | 1.0R | 5.0 | 16 | 60 | 6 | 4 |
| EHCRC40501030A | 5.0 | 1.0R | 5.0 | 30 | 75 | 6 | 4 |
| EHCRC40600120A | 6.0 | 0.1R | 7.0 | 20 | 60 | 6 | 4 |
| EHCRC40600130A | 6.0 | 0.1R | 7.0 | 30 | 75 | 6 | 4 |
| EHCRC40600220A | 6.0 | 0.2R | 7.0 | 20 | 60 | 6 | 4 |
| EHCRC40600230A | 6.0 | 0.2R | 7.0 | 30 | 75 | 6 | 4 |
| EHCRC40600320A | 6.0 | 0.3R | 7.0 | 20 | 60 | 6 | 4 |
| EHCRC40600330A | 6.0 | 0.3R | 7.0 | 30 | 75 | 6 | 4 |
| EHCRC40600520A | 6.0 | 0.5R | 7.0 | 20 | 60 | 6 | 4 |
| EHCRC40600530A | 6.0 | 0.5R | 7.0 | 30 | 75 | 6 | 4 |
| EHCRC40601020A | 6.0 | 1.0R | 7.0 | 20 | 60 | 6 | 4 |
| EHCRC40601030A | 6.0 | 1.0R | 7.0 | 30 | 75 | 6 | 4 |
| EHCRC40601520A | 6.0 | 1.5R | 7.0 | 20 | 60 | 6 | 4 |
| EHCRC40601530A | 6.0 | 1.5R | 7.0 | 30 | 75 | 6 | 4 |
| EHCRC40800522A | 8.0 | 0.5R | 9.0 | 22 | 60 | 8 | 4 |
| EHCRC40801022A | 8.0 | 1.0R | 9.0 | 22 | 60 | 8 | 4 |
| EHCRC40801522A | 8.0 | 1.5R | 9.0 | 22 | 60 | 8 | 4 |
| EHCRC40802022A | 8.0 | 2.0R | 9.0 | 22 | 60 | 8 | 4 |
| EHCRC41000524A | 10.0 | 0.5R | 11.0 | 24 | 75 | 10 | 4 |
| EHCRC41001024A | 10.0 | 1.0R | 11.0 | 24 | 75 | 10 | 4 |
| EHCRC41001524A | 10.0 | 1.5R | 11.0 | 24 | 75 | 10 | 4 |
| EHCRC41002024A | 10.0 | 2.0R | 11.0 | 24 | 75 | 10 | 4 |
| EHCRC41200526A | 12.0 | 0.5R | 13.0 | 26 | 75 | 12 | 4 |
| EHCRC41201026A | 12.0 | 1.0R | 13.0 | 26 | 75 | 12 | 4 |
| EHCRC41201526A | 12.0 | 1.5R | 13.0 | 26 | 75 | 12 | 4 |
| EHCRC41202026A | 12.0 | 2.0R | 13.0 | 26 | 75 | 12 | 4 |
EHCRC
d R
L1
L2
L
D
| d | Tolerance | EHCRC41202026A 12 |
| Ø | 0 ~ 0.02 | |
| ����� | R ± 0.015 | |
| R > 2 | R ± 0.020 | ✽ is ARCO Coating |
is SICO Coating
