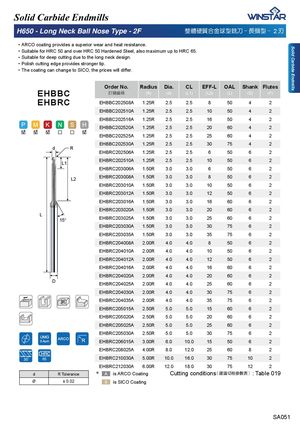

Solid Carbide Endmills H650 - Long Neck Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 朆槇⤚ .!2 ⎒ ᅚ ARCO coating provides a superior wear and heat resistance. Solid Carbide Endmills ᅚ Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚ Suitable for deep cutting due to the long neck design. ᅚ Polish cutting edge provides stronger tip. ᅚ 7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU Order No. Radius Dia. CL EFF-L OAL Shank Flutes EHBBC 宑庋佷䩋 (R) (d) (L1) (L2) (L) (D) (F) EHBRC EHBBC202508A 1.25R 2.5 2.5 8 50 4 2 EHBBC202510A 1.25R 2.5 2.5 10 50 4 2 EHBBC202516A 1.25R 2.5 2.5 16 50 4 2 EHBBC202520A 1.25R 2.5 2.5 20 60 4 2 EHBBC202525A 1.25R 2.5 2.5 25 60 4 2 EHBBC202530A 1.25R 2.5 2.5 30 75 4 2 d R EHBRC202506A 1.25R 2.5 2.5 6 50 6 2 EHBRC202510A 1.25R 2.5 2.5 10 50 6 2 L1 EHBRC203006A 1.50R 3.0 3.0 6 50 6 2 L2 EHBRC203008A 1.50R 3.0 3.0 8 50 6 2 EHBRC203010A 1.50R 3.0 3.0 10 50 6 2 EHBRC203012A 1.50R 3.0 3.0 12 50 6 2 EHBRC203016A 1.50R 3.0 3.0 16 60 6 2 EHBRC203020A 1.50R 3.0 3.0 20 60 6 2 L 15° EHBRC203025A 1.50R 3.0 3.0 25 60 6 2 EHBRC203030A 1.50R 3.0 3.0 30 75 6 2 EHBRC203035A 1.50R 3.0 3.0 35 75 6 2 EHBRC204008A 2.00R 4.0 4.0 8 50 6 2 EHBRC204010A 2.00R 4.0 4.0 10 50 6 2 EHBRC204012A 2.00R 4.0 4.0 12 50 6 2 EHBRC204016A 2.00R 4.0 4.0 16 60 6 2 EHBRC204020A 2.00R 4.0 4.0 20 60 6 2 D EHBRC204025A 2.00R 4.0 4.0 25 60 6 2 EHBRC204030A 2.00R 4.0 4.0 30 75 6 2 EHBRC204035A 2.00R 4.0 4.0 35 75 6 2 EHBRC205015A 2.50R 5.0 5.0 15 60 6 2 EHBRC205020A 2.50R 5.0 5.0 20 60 6 2 EHBRC205025A 2.50R 5.0 5.0 25 60 6 2 EHBRC205030A 2.50R 5.0 5.0 30 75 6 2 EHBRC206015A 3.00R 6.0 10.0 15 50 6 2 EHBRC208025A 4.00R 8.0 12.0 25 60 8 2 65 EHBRC210030A 5.00R 10.0 16.0 30 75 10 2 EHBRC212030A 6.00R 12.0 18.0 30 75 12 2 d R Tolerance ✽ is ARCO Coating Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 019 Ø ± 0.02 is SICO Coating SA051
