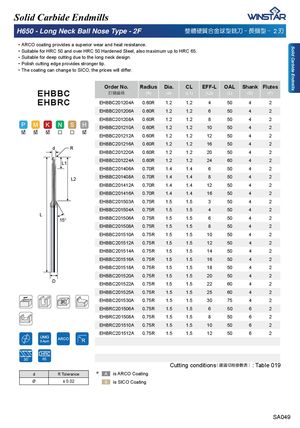

Каталог Winstar монолитный инструмент 2020 - страница 59

Предыдущая страница Следующая страница

Навигация

ᅚARCO coating provides a superior wear and heat resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚSuitable for deep cutting due to the long neck design. ᅚPolish cutting edge provides stronger tip. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU

Order No. ����Radius (R)Dia. (d)CL (L1)EFF-L (L2)OAL (L)Shank (D)Flutes (F)
EHBBC201204A0.60R1.21.245042
EHBBC201206A0.60R1.21.265042
EHBBC201208A0.60R1.21.285042
EHBBC201210A0.60R1.21.2105042
EHBBC201212A0.60R1.21.2125042
EHBBC201216A0.60R1.21.2165042
EHBBC201220A0.60R1.21.2205042
EHBBC201224A0.60R1.21.2246042
EHBBC201406A0.70R1.41.465042
EHBBC201408A0.70R1.41.485042
EHBBC201412A0.70R1.41.4125042
EHBBC201416A0.70R1.41.4165042
EHBBC201503A0.75R1.51.535042
EHBBC201504A0.75R1.51.545042
EHBBC201506A0.75R1.51.565042
EHBBC201508A0.75R1.51.585042
EHBBC201510A0.75R1.51.5105042
EHBBC201512A0.75R1.51.5125042
EHBBC201514A0.75R1.51.5145042
EHBBC201516A0.75R1.51.5165042
EHBBC201518A0.75R1.51.5185042
EHBBC201520A0.75R1.51.5205042
EHBBC201522A0.75R1.51.5226042
EHBBC201525A0.75R1.51.5256042
EHBBC201530A0.75R1.51.5307542
EHBRC201506A0.75R1.51.565062
EHBRC201508A0.75R1.51.585062
EHBRC201510A0.75R1.51.5105062
EHBRC201512A0.75R1.51.5125062

EHBBC

EHBRC

d R

L1

L2

L

D

d R Tolerance 65✽is ARCO Coating
Ø ± 0.02is SICO Coating

Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 019
