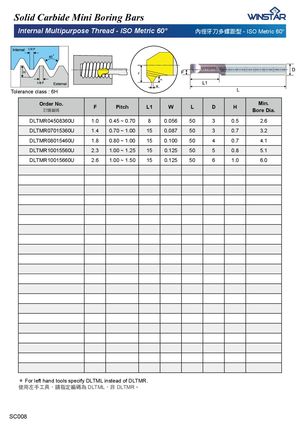

Solid Carbide Mini Boring Bars Internal Multipurpose Thread - ISO Metric 60° 內徑牙刀多螺距型 - ISO Metric 60° Tolerance class : 6H Order No.宑庋佷䩋 F Pitch L1 W L D H Min.Bore Dia. DLTMR04508360U 1.0 0.45 ~ 0.70 8 0.056 50 3 0.5 2.6 DLTMR07015360U 1.4 0.70 ~ 1.00 15 0.087 50 3 0.7 3.2 DLTMR08015460U 1.8 0.80 ~ 1.00 15 0.100 50 4 0.7 4.1 DLTMR10015560U 2.3 1.00 ~ 1.25 15 0.125 50 5 0.8 5.1 DLTMR10015660U 2.6 1.00 ~ 1.50 15 0.125 50 6 1.0 6.0 ✽ For left hand tools specify DLTML instead of DLTMR. !! ℎ䚷⽵㏚⽴⌆虇屚㒖⴩佷䩋䉉 DLTML虇棭 DLTMRҸ SC008
