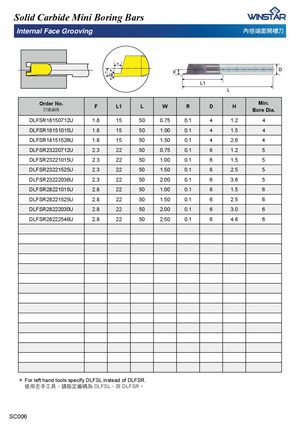

Каталог Winstar монолитный инструмент 2020 - страница 346

Solid Carbide Mini Boring Bars Internal Face Grooving ⋶ㄠ䱾棱朚㮌⎏ Order No.宑庋佷䩋 F L1 L W R D H Min.Bore Dia. DLFSR18150712U 1.8 15 50 0.75 0.1 4 1.2 4 DLFSR18151015U 1.8 15 50 1.00 0.1 4 1.5 4 DLFSR18151526U 1.8 15 50 1.50 0.1 4 2.6 4 DLFSR23220712U 2.3 22 50 0.75 0.1 6 1.2 5 DLFSR23221015U 2.3 22 50 1.00 0.1 6 1.5 5 DLFSR23221525U 2.3 22 50 1.50 0.1 6 2.5 5 DLFSR23222036U 2.3 22 50 2.00 0.1 6 3.6 5 DLFSR28221015U 2.8 22 50 1.00 0.1 6 1.5 6 DLFSR28221525U 2.8 22 50 1.50 0.1 6 2.5 6 DLFSR28222030U 2.8 22 50 2.00 0.1 6 3.0 6 DLFSR28222546U 2.8 22 50 2.50 0.1 6 4.6 6 ✽ For left hand tools specify DLFSL instead of DLFSR. !! ℎ䚷⽵㏚⽴⌆虇屚㒖⴩佷䩋䉉 DLFSL虇棭 DLFSRҸ SC006
