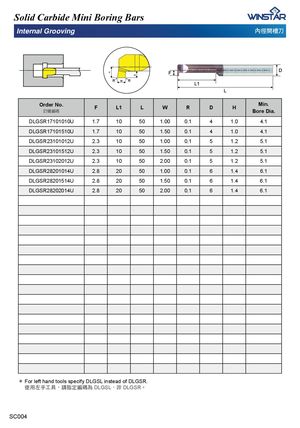

Solid Carbide Mini Boring Bars Internal Grooving ⋶ㄠ朚㮌⎏ Order No.宑庋佷䩋 F L1 L W R D H Min.Bore Dia. DLGSR17101010U 1.7 10 50 1.00 0.1 4 1.0 4.1 DLGSR17101510U 1.7 10 50 1.50 0.1 4 1.0 4.1 DLGSR23101012U 2.3 10 50 1.00 0.1 5 1.2 5.1 DLGSR23101512U 2.3 10 50 1.50 0.1 5 1.2 5.1 DLGSR23102012U 2.3 10 50 2.00 0.1 5 1.2 5.1 DLGSR28201014U 2.8 20 50 1.00 0.1 6 1.4 6.1 DLGSR28201514U 2.8 20 50 1.50 0.1 6 1.4 6.1 DLGSR28202014U 2.8 20 50 2.00 0.1 6 1.4 6.1 ✽ For left hand tools specify DLGSL instead of DLGSR. !! ℎ䚷⽵㏚⽴⌆虇屚㒖⴩佷䩋䉉 DLGSL虇棭 DLGSRҸ SC004
