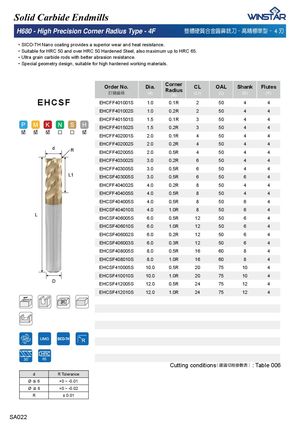

H680 - High Precision Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ . 汧乍㮨䀥⤚ .!4 ⎒
ᅚSICO-TH Nano coating provides a superior wear and heat resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚUltra grain carbide rods with better abrasion resistance. ᅚSpecial geometry design, suitable for high hardened working materials.
| Order No. ���� | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHCFF401001S | 1.0 | 0.1R | 2 | 50 | 4 | 4 |
| EHCFF401002S | 1.0 | 0.2R | 2 | 50 | 4 | 4 |
| EHCFF401501S | 1.5 | 0.1R | 3 | 50 | 4 | 4 |
| EHCFF401502S | 1.5 | 0.2R | 3 | 50 | 4 | 4 |
| EHCFF402001S | 2.0 | 0.1R | 4 | 50 | 4 | 4 |
| EHCFF402002S | 2.0 | 0.2R | 4 | 50 | 4 | 4 |
| EHCFF402005S | 2.0 | 0.5R | 4 | 50 | 4 | 4 |
| EHCFF403002S | 3.0 | 0.2R | 6 | 50 | 4 | 4 |
| EHCFF403005S | 3.0 | 0.5R | 6 | 50 | 4 | 4 |
| EHCSF403005S | 3.0 | 0.5R | 6 | 50 | 6 | 4 |
| EHCFF404002S | 4.0 | 0.2R | 8 | 50 | 4 | 4 |
| EHCFF404005S | 4.0 | 0.5R | 8 | 50 | 4 | 4 |
| EHCSF404005S | 4.0 | 0.5R | 8 | 50 | 6 | 4 |
| EHCSF404010S | 4.0 | 1.0R | 8 | 50 | 6 | 4 |
| EHCSF406005S | 6.0 | 0.5R | 12 | 50 | 6 | 4 |
| EHCSF406010S | 6.0 | 1.0R | 12 | 50 | 6 | 4 |
| EHCSF406002S | 6.0 | 0.2R | 12 | 50 | 6 | 4 |
| EHCSF406003S | 6.0 | 0.3R | 12 | 50 | 6 | 4 |
| EHCSF408005S | 8.0 | 0.5R | 16 | 60 | 8 | 4 |
| EHCSF408010S | 8.0 | 1.0R | 16 | 60 | 8 | 4 |
| EHCSF410005S | 10.0 | 0.5R | 20 | 75 | 10 | 4 |
| EHCSF410010S | 10.0 | 1.0R | 20 | 75 | 10 | 4 |
| EHCSF412005S | 12.0 | 0.5R | 24 | 75 | 12 | 4 |
| EHCSF412010S | 12.0 | 1.0R | 24 | 75 | 12 | 4 |
EHCSF
d R
L
D
65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 006
| d | R Tolerance |
| �6 | +0 ~ -0.01 |
| ��8 | +0 ~ -0.02 |
| R | ± 0.01 |
