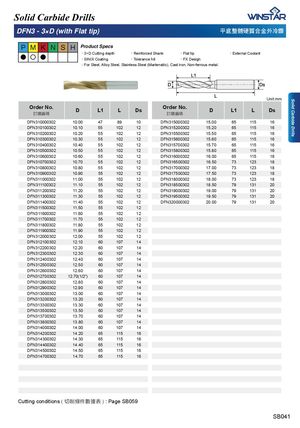

Каталог Winstar монолитный инструмент 2020 - страница 315

Solid Carbide Drills Solid Carbide Drills DFN3 - 3×D (with Flat tip) 。〤㜃汣䧻幹▗捠⪥⍆昌 P M K N S H Product Specs 虉3×D Cutting depth 虉Reinforced Shank 虉Flat tip 虉External Coolant β ΰ β 虉SINIX Coating 虉Tolerance h8 虉FX Design 虉For Steel, Alloy Steel, Stainless Steel (Martensitic), Cast iron, Non-ferrous metal. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DFN310000302 10.00 47 89 10 DFN315000302 15.00 65 115 16 DFN310100302 10.10 55 102 12 DFN315200302 15.20 65 115 16 DFN310200302 10.20 55 102 12 DFN315500302 15.50 65 115 16 DFN310300302 10.30 55 102 12 DFN315600302 15.60 65 115 16 DFN310400302 10.40 55 102 12 DFN315700302 15.70 65 115 16 DFN310500302 10.50 55 102 12 DFN315800302 15.80 65 115 16 DFN310600302 10.60 55 102 12 DFN316000302 16.00 65 115 16 DFN310700302 10.70 55 102 12 DFN316500302 16.50 73 123 18 DFN310800302 10.80 55 102 12 DFN317000302 17.00 73 123 18 DFN310900302 10.90 55 102 12 DFN317500302 17.50 73 123 18 DFN311000302 11.00 55 102 12 DFN318000302 18.00 73 123 18 DFN311100302 11.10 55 102 12 DFN318500302 18.50 79 131 20 DFN311200302 11.20 55 102 12 DFN319000302 19.00 79 131 20 DFN311300302 11.30 55 102 12 DFN319500302 19.50 79 131 20 DFN311400302 11.40 55 102 12 DFN320000302 20.00 79 131 20 DFN311500302 11.50 55 102 12 DFN311600302 11.60 55 102 12 DFN311700302 11.70 55 102 12 DFN311800302 11.80 55 102 12 DFN311900302 11.90 55 102 12 DFN312000302 12.00 55 102 12 DFN312100302 12.10 60 107 14 DFN312200302 12.20 60 107 14 DFN312300302 12.30 60 107 14 DFN312400302 12.40 60 107 14 DFN312500302 12.50 60 107 14 DFN312600302 12.60 60 107 14 DFN312700302 12.70(1/2") 60 107 14 DFN312800302 12.80 60 107 14 DFN312900302 12.90 60 107 14 DFN313000302 13.00 60 107 14 DFN313200302 13.20 60 107 14 DFN313300302 13.30 60 107 14 DFN313500302 13.50 60 107 14 DFN313700302 13.70 60 107 14 DFN313800302 13.80 60 107 14 DFN314000302 14.00 60 107 14 DFN314200302 14.20 65 115 16 DFN314300302 14.30 65 115 16 DFN314400302 14.40 65 115 16 DFN314500302 14.50 65 115 16 DFN314700302 14.70 65 115 16 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB041
