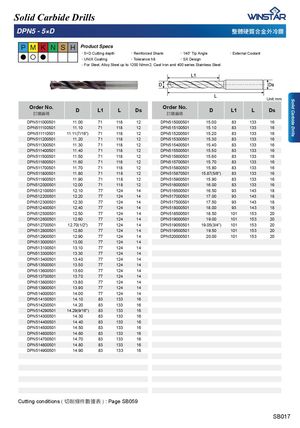

Каталог Winstar монолитный инструмент 2020 - страница 291

Solid Carbide Drills Solid Carbide Drills DPN5 - 5×D 㜃汣䧻幹▗捠外⍆昌 P M K N S H Product Specs 虉5×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉External Coolant β ΰ β 虉UNIX Coating 虉Tolerance h8 虉SX Design 虉For Steel, Alloy Steel up to 1200 N/mm2, Cast Iron and 400 series Stainless Steel. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPN511000501 11.00 71 118 12 DPN515000501 15.00 83 133 16 DPN511100501 11.10 71 118 12 DPN515100501 15.10 83 133 16 DPN511110501 11.11(7/16") 71 118 12 DPN515200501 15.20 83 133 16 DPN511200501 11.20 71 118 12 DPN515300501 15.30 83 133 16 DPN511300501 11.30 71 118 12 DPN515400501 15.40 83 133 16 DPN511400501 11.40 71 118 12 DPN515500501 15.50 83 133 16 DPN511500501 11.50 71 118 12 DPN515600501 15.60 83 133 16 DPN511600501 11.60 71 118 12 DPN515700501 15.70 83 133 16 DPN511700501 11.70 71 118 12 DPN515800501 15.80 83 133 16 DPN511800501 11.80 71 118 12 DPN515870501 15.87(5/8") 83 133 16 DPN511900501 11.90 71 118 12 DPN515900501 15.90 83 133 16 DPN512000501 12.00 71 118 12 DPN516000501 16.00 83 133 16 DPN512100501 12.10 77 124 14 DPN516500501 16.50 93 143 18 DPN512200501 12.20 77 124 14 DPN517000501 17.00 93 143 18 DPN512300501 12.30 77 124 14 DPN517500501 17.50 93 143 18 DPN512400501 12.40 77 124 14 DPN518000501 18.00 93 143 18 DPN512500501 12.50 77 124 14 DPN518500501 18.50 101 153 20 DPN512600501 12.60 77 124 14 DPN519000501 19.00 101 153 20 DPN512700501 12.70(1/2") 77 124 14 DPN519050501 19.05(3/4") 101 153 20 DPN512800501 12.80 77 124 14 DPN519500501 19.50 101 153 20 DPN512900501 12.90 77 124 14 DPN520000501 20.00 101 153 20 DPN513000501 13.00 77 124 14 DPN513100501 13.10 77 124 14 DPN513300501 13.30 77 124 14 DPN513400501 13.40 77 124 14 DPN513500501 13.50 77 124 14 DPN513600501 13.60 77 124 14 DPN513700501 13.70 77 124 14 DPN513800501 13.80 77 124 14 DPN513900501 13.90 77 124 14 DPN514000501 14.00 77 124 14 DPN514100501 14.10 83 133 16 DPN514200501 14.20 83 133 16 DPN514290501 14.29(9/16") 83 133 16 DPN514300501 14.30 83 133 16 DPN514400501 14.40 83 133 16 DPN514500501 14.50 83 133 16 DPN514600501 14.60 83 133 16 DPN514700501 14.70 83 133 16 DPN514800501 14.80 83 133 16 DPN514900501 14.90 83 133 16 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB017
